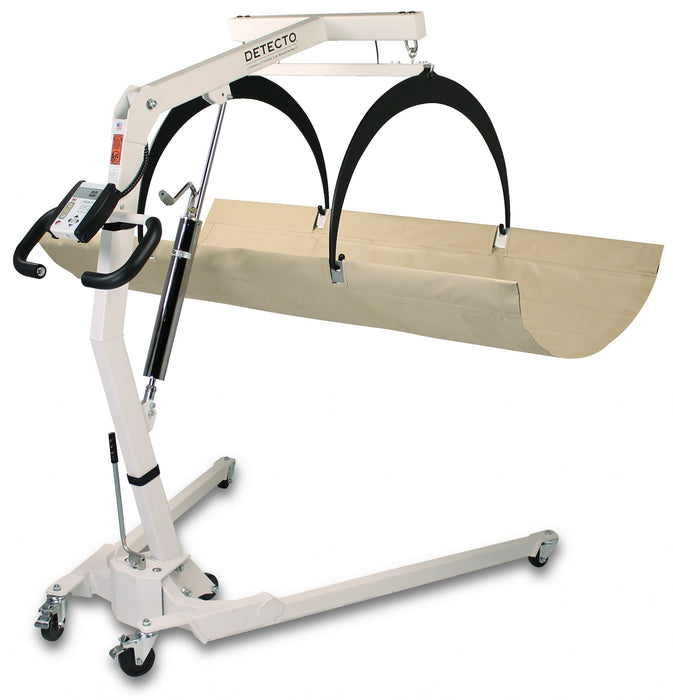

Detecto Digital In-Bed Lift Scale

The Detecto Digital In‑Bed Lift Scale is a sturdy hydraulic lift system designed to weigh bed-bound patients safely and accurately. Ideal for hospitals, long-term care facilities, rehabilitation centers, and outpatient clinics, it ensures precise measurements while reducing staff strain and maintaining patient comfort.

Overview

This scale features a flame-retardant, antibacterial 6 ft stretcher that slides effortlessly under patients and lifts hydraulically to bed height. The large 0.75" LCD display, RS232 EMR/EHR connectivity, and zero-out function enhance clinical workflow and data accuracy. Available in 500 lb (fixed base) and 800 lb (adjustable base) versions.

Key Features

• Hydraulic lift gently raises stretcher for safe patient weighing
• Flame-retardant, antibacterial stretcher ensures infection control
• Large 0.75″ LCD and zero-key for subtracting bedding weight
• RS232 connectivity supports EMR/EHR integration and data logging
• Full-swivel casters with locking mechanism for stability
• Adjustable leg base to fit through standard 32″ doorways
• Powered by 6 AA batteries or optional AC adapter
• Made in USA with durable steel construction

Product Specifications

• Capacity:
  • IB800 – 800 lb × 0.2 lb (350 kg × 0.1 kg)
• Stretcher: 72″ (1.8 m) Sure‑Check flame-retardant, antibacterial fabric
• Under‑bed clearance: 4.8″ (12 cm)

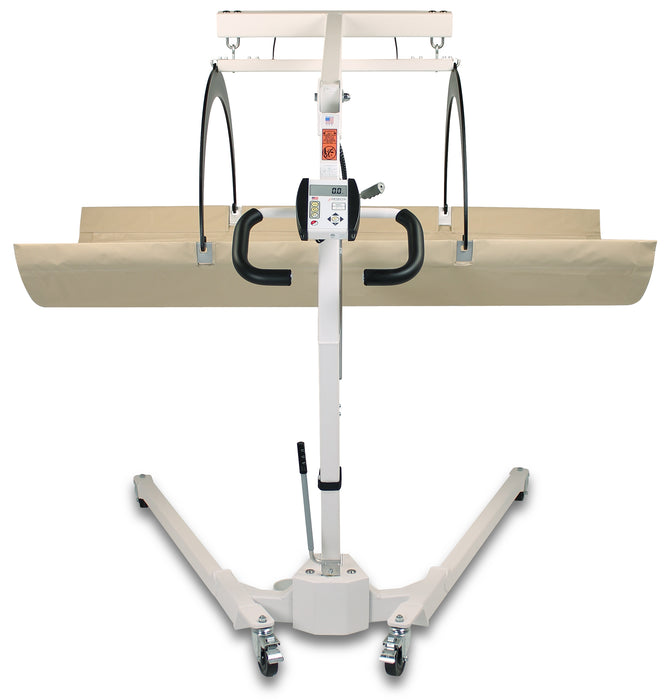

• Legs: Fixed (IBFL500) or adjustable (IB800) to navigate standard doorways
• Display: 0.75″ / 19 mm LCD, 6-digit
• Power: 6 AA batteries (not included) or optional AC adapter
• Connectivity: RS232 serial interface for EMR/EHR
• Portability: Swivel casters with rear locking; IB800 fits through 32″ doorways, IBFL500 fits through 36″
• Construction: Heavy-duty steel frame

Ideal For

• Hospital inpatient units
• Long‑term care and rehabilitation centers
• Outpatient and home health clinics
• Patients unable to stand on traditional scales
• Facilities requiring seamless EMR/EHR data integration
