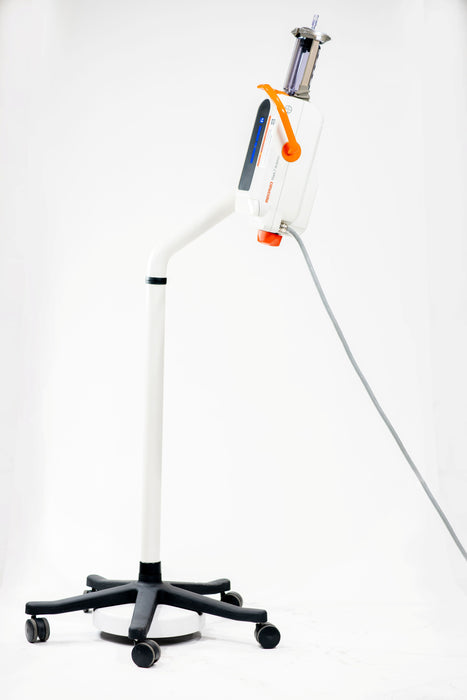

The Medrad Mark 7 Arterion Injection System is a next‑generation angiographic injector designed for interventional radiology suites, catheterization labs, and hybrid OR environments. Lightweight and ergonomically enhanced, it offers streamlined workflows—with intuitive controls and precision delivery—for confident contrast injections and improved patient throughput.

Overview:
Building on proven MEDRAD® VFlow and Twist & Go technologies, the Mark 7 Arterion combines real‑time variable flow, front‑load syringe convenience, and a compact, mobile design. Clinicians benefit from clear visualization of contrast media, simplified setup and teardown, and the ability to execute multi‑phase protocols—all while minimizing radiation exposure and optimizing lab efficiency.

Key Features

• Ergonomic, lighter injector head (–16%) with handle for easy positioning
• 32% lighter, compact pedestal and smooth‑rolling casters for enhanced maneuverability
• Front‑load syringe system for swift, clean insertion and removal
• Clear polycarbonate barrel for visual monitoring of contrast and air
• MEDRAD® Twist & Go disposable syringe enables one‑handed, high‑pressure tubing attachment
• VFlow sterile hand controller offers real‑time variable flow control and remote injection capability
• Color touchscreen with visible protocol storage and injection history (up to 35 protocols, 50 records)
• Support for up to four‑phase injections with precise timing, pressure, and volume control

Product Specifications

• Dimensions (H×W×D): 57.4″ × 22″ × 47.3″ (145.8 cm×55.9 cm×120.1 cm)
• Weight: ≈ 146 lb (66.2 kg)
• Flow Rates:
  • Fixed: 0.1–45.0 mL/s (single & phased), 0.1–59.9 mL/min
  • Variable (via VFlow): 1.0–10.0 mL/s in 0.1 mL/s increments
• Volume Capacity: 1–150 mL in 1 mL steps; syringe size: 150 mL
• Pressure Limit: 100–1200 psi (689–8273 kPa) in 1‑unit increments
• Timing Functions: Rise time: 0.0–9.9 s; Delay time: 0.0–99.9 s; Fill speed: 1–10 mL/s
• Protocol Memory: Store up to 35 custom protocols; Injection history: ~50 records
• Operating Conditions: 59–104 °F (15–40 °C), humidity 20–75% RH
• Storage Conditions: –4–140 °F (–20–60 °C), humidity 5–100% RH
• Compliance: Uses sterile, single‑use disposable syringes; front‑load design meets angiographic injection standards

Ideal For

• Interventional radiology and cardiac cath lab suites
• Hybrid operating rooms and angiography labs
• Neuro‑, peripheral, and coronary angiographic procedures
• Facilities seeking improved workflow efficiency and staff mobility
• Clinics using variable flow protocols and needing protocol/history tracking

Warranty: 1 Year
Lead Time: 14 Days
