Welch Allyn Welch Allyn Connex Integrated Wall System Diagnostic Sets/Systems reLink Medical
SKU 84MTVX2-US

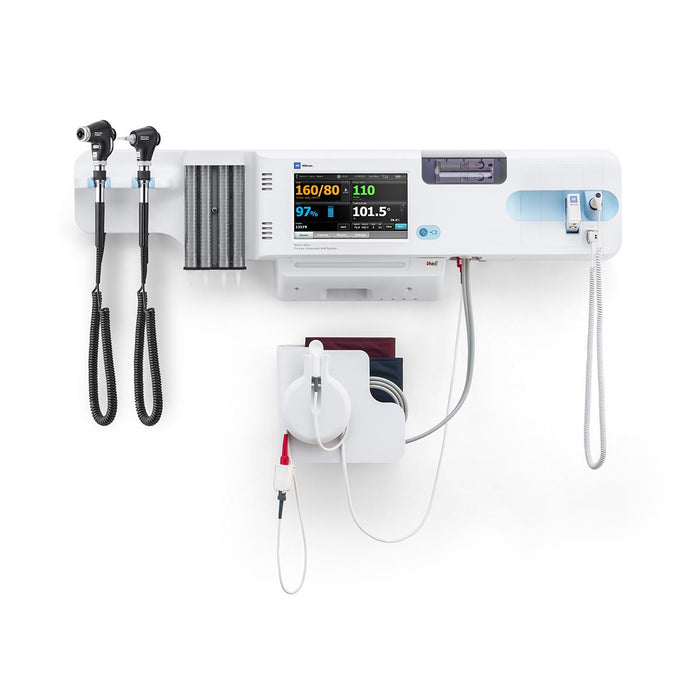

Welch Allyn Connex Integrated Wall System

$8,295.00 - $8,295.00
$8,295.00
$8,295.00 - $8,295.00
$8,295.00
Options: Masimo SpO2, Ethernet Connectivity, SureTemp Only
Buying Options: New


Connex Integrated Wall System, Masimo SpO2, SureTemp Plus Thermometry, BP Cuff, Cord Management System, Integrated MacroView Otoscope, PanOptic Ophthalmoscope, SureBP Non-Invasive Blood Pressure, Pulse Rate, MAP, Programmable Alarms, BP Averaging, Adult/ Pediatric/ Neonate Patient Support, (4) USB Ports, Ethernet Port, 100-240V, 50-60Hz AC, IEC Plug Type B (US Only) (Item is considered HAZMAT and cannot ship via Air or to AK, GU, HI, MP, PR, VI)

Lead Time: 2-3 weeks
Warranty: Manufacturer's Warranty

The Welch Allyn Connex Integrated Wall System is a wall-mounted diagnostic platform that combines vital signs monitoring and physical exam tools into one streamlined unit. Designed for hospitals, exam rooms, and urgent care centers, it improves workflow efficiency, documentation accuracy, and patient safety.

Overview

This integrated wall system offers fast, automated blood pressure (SureBP®), pulse oximetry (Masimo or Nellcor), and temperature readings (SureTemp® Plus and/or Braun ThermoScan® PRO 6000). The high-resolution touchscreen enables easy navigation for spot-check, interval, and continuous monitoring modes. EMR integration via Wi-Fi, Ethernet, USB, or Bluetooth ensures real-time charting, while advanced security features like Imprivata® single sign-on and data encryption help protect sensitive information. Integrated otoscope and ophthalmoscope handles add essential exam tools to the same footprint, maximizing space efficiency.

Key Features

  • SureBP® Technology: Non-invasive BP readings in approximately 15 seconds with automated averaging.
  • Modular SpO₂ and Thermometry: Supports Masimo or Nellcor sensors and SureTemp Plus or Braun PRO 6000 thermometers.
  • Large Color Touchscreen: 8.9″ display with customizable workflows and visual early warning scoring tools.
  • Integrated Physical Exam Tools: Includes otoscope and ophthalmoscope with LED illumination and charging handles.
  • EMR Connectivity: Wi-Fi, Ethernet, USB, and Bluetooth options for seamless data transmission to electronic medical records.
  • Secure Access: Imprivata single sign-on and data encryption for secure user authentication and patient data protection.
  • Customizable Platform: Expandable with ECG, barcode scanner, scales, and more.
  • Cord Management: Built-in cable organizers reduce clutter and support a safer clinical environment.

Product Specifications

  • Display: 8.9″ high-resolution color touchscreen
  • Measurements: NIBP, SpO₂, temperature, pulse rate, respiration rate (optional)
  • BP Technology: SureBP® with 15-second readings and averaging support
  • Connectivity: Wi-Fi, Ethernet, USB, Bluetooth
  • Thermometer Compatibility: SureTemp Plus and/or Braun ThermoScan PRO 6000
  • SpO₂ Options: Masimo or Nellcor sensor modules
  • Power Supply: AC-powered with lithium-ion backup battery
  • Dimensions: Approximately 10.6″ H × 38″ W × 6″ D
  • Weight: Approximately 14.1 lb (with battery and handles)
  • Environmental Range: 10–40 °C operating temperature, 15–95% relative humidity
  • Certifications: ISO 13485, CE marked, ANSI/AAMI compliant

Ideal For

  • Hospitals and acute care units
  • Outpatient clinics and ambulatory care centers
  • Primary and specialty care exam rooms
  • Urgent care facilities
  • Medical practices seeking EMR-connected diagnostics


Warranty: Manufacturer Warranty
Lead Time: 14-21 Days
