Rigel Medical PatSim 200 Patient Simulator

The Rigel PatSim 200 is a portable, multi-parameter patient simulator engineered to streamline testing of ECG, IBP, respiration, temperature, and fetal monitoring equipment. Designed for clinical engineers, biomedical service teams, and healthcare training environments, it offers swift, accurate simulation with a user-friendly interface.

Overview

Built for efficiency and reliability, the PatSim 200 features a vibrant colour LCD and intuitive navigation, allowing users to store and instantly recall up to five frequently used simulation sequences. Lightweight, battery-powered and enclosed in a robust carry case, it’s ideal for use in both clinical and field settings. Compatible with legacy ECG, IBP, and temperature cables, it reduces replacement costs and deployment time :contentReference[oaicite:0]{index=0}.

Key Features

• Full 12‑lead ECG simulation with NSR, over 40 arrhythmias and paced rhythms :contentReference[oaicite:1]{index=1}
• Two‑channel invasive blood pressure (IBP) simulation with static & dynamic waveforms :contentReference[oaicite:2]{index=2}
• On‑screen display of respiration, temperature and fetal monitoring waveforms :contentReference[oaicite:3]{index=3}
• Recall up to 5 custom simulations instantly via dedicated home button :contentReference[oaicite:4]{index=4}
• Rechargeable Li‑Ion battery delivers up to 6 hours of continuous operation :contentReference[oaicite:5]{index=5}
• Compact (180×150×55 mm), lightweight (0.7 kg) design with rugged carry case :contentReference[oaicite:6]{index=6}

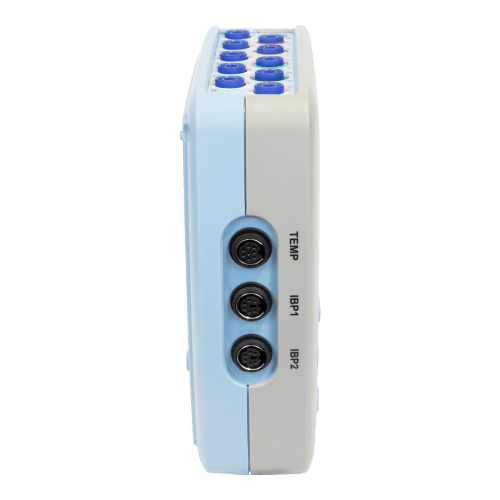

• Universal ECG studs and mini‑DIN connectors support existing legacy cables :contentReference[oaicite:7]{index=7}
• Field‑upgradeable firmware and global localisation options :contentReference[oaicite:8]{index=8}

Product Specifications

• Dimensions: 180 × 150 × 55 mm (7.1″ × 5.9″ × 2.2″) :contentReference[oaicite:9]{index=9}
• Weight: 0.70 kg (1.5 lbs) :contentReference[oaicite:10]{index=10}

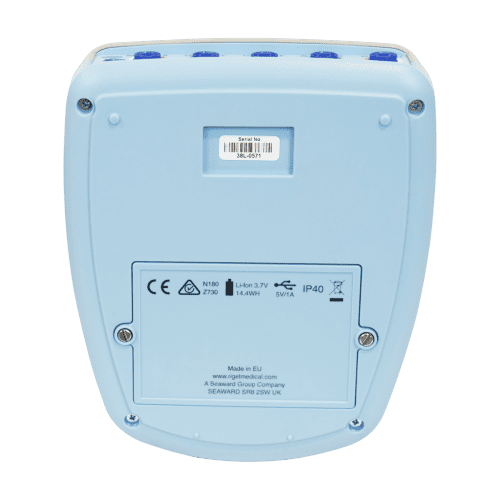

• Battery: 3.7 V 3900 mAh Li‑Ion; 6 hours typical runtime; 3–4 hr recharge via USB or 100‑240 V mains :contentReference[oaicite:11]{index=11}
• Display: High‑contrast, low‑luminance colour LCD
• ECG Simulation: NSR 30–300 BPM ±1 BPM; amplitudes 0.05–5.5 mV; ST segments ±0.8 mV; neonatal mode; paced waveforms (square, triangle, sine) :contentReference[oaicite:12]{index=12}
• Arrhythmias: Over 40 including VF, VT, AF, AV blocks, PACs/PVCs :contentReference[oaicite:13]{index=13}
• IBP Simulation: 2 channels; static ranges −10 to 400 mmHg; dynamic waveforms (ART, RV, PA, CVP, etc.) ±1 mmHg accuracy :contentReference[oaicite:14]{index=14}
• Respiration: Lead I/II; rates 0–180 brpm; apnoea on/off :contentReference[oaicite:15]{index=15}
• Temperature: Mini‑DIN YSI simulation at 0 °C, 24 °C, 37 °C, 40 °C (±0.1 °C); °C/°F selectable :contentReference[oaicite:16]{index=16}
• Fetal Monitoring: Maternal 80 BPM; fetal HR selectable 60–240 BPM with deceleration waveforms :contentReference[oaicite:17]{index=17}
• Compliance: CE‑marked; covered by 5‑year warranty; annual recalibration recommended :contentReference[oaicite:18]{index=18}

Ideal For

• Hospital clinical engineering departments
• Biomedical equipment servicing and maintenance teams
• Medical device training and simulation labs
• Quality assurance and accreditation testing
• Portable or mobile field testing operations
• Graduate-level clinical education programmes
