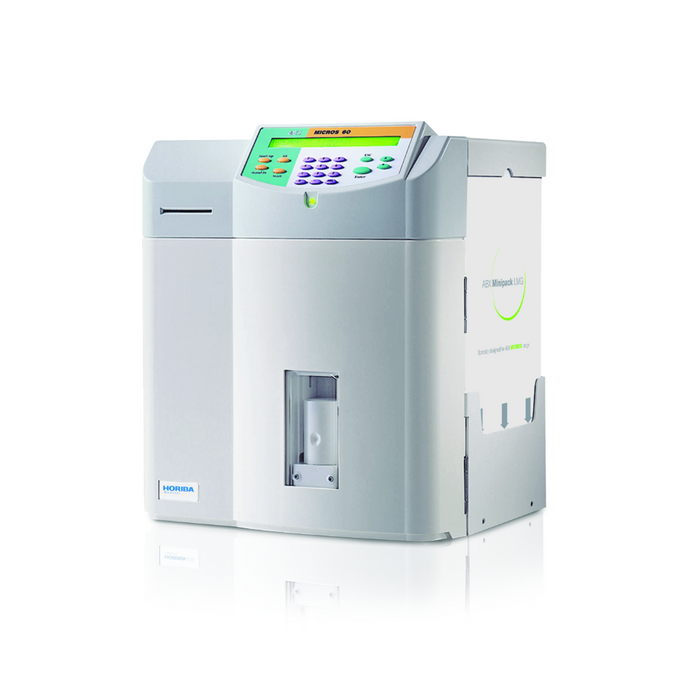

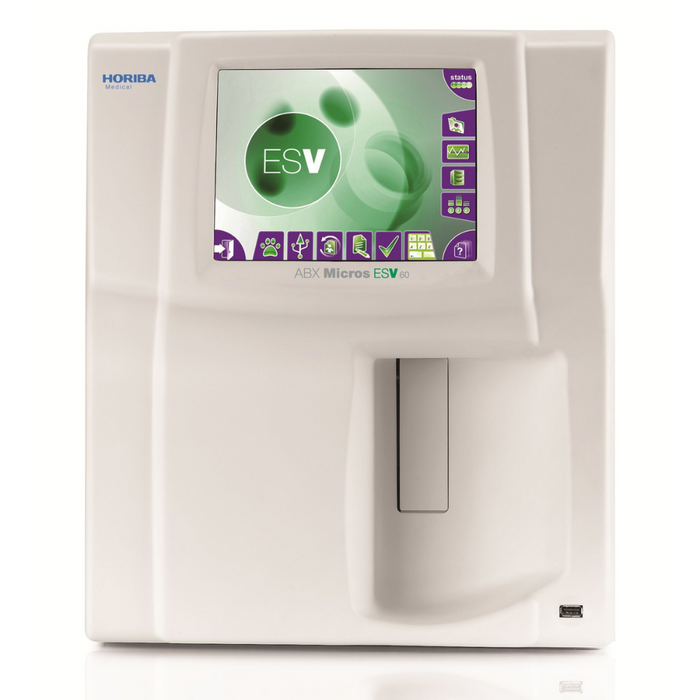

Horiba Micros 60 Hematology Analyzer

The HORIBA ABX Micros 60 / ESV 60 is a compact, benchtop hematology analyzer designed for rapid and reliable complete blood counts (CBC) with 8 or 18 parameters and 3-part differential. Ideal for veterinary and human point-of-care labs, this system combines impedance and photometric measurement in a micro-sampling format—delivering results in as little as 50–60 tests per hour while requiring just 10 µL of whole blood.

User-friendly and low-maintenance, the Micros 60 features stepper-motor technology (no compressor), an intuitive touchscreen or alphanumeric interface, and optional barcode reader. It supports both open- and closed-tube modes and offers flexible data management via USB, smart card, or LAN—enhancing workflow efficiency in busy clinical settings.

Key Features

• Micro-sample volume of just 10 µL—minimizes patient stress
• Dual measurement with impedance for cell counts and photometry for hemoglobin
• Choice of 8-parameter for small mammals or 18-parameter panel with differential for dogs, cats, horses
• Up to 60 samples/hour open-tube or 55 closed-tube throughput
• No-compressor stepper motor for quiet, reliable operation
• Flexible sampling: open/closed tube modes with automatic probe cleaning
• Data export via USB, smart card, RS232, or LAN with on-board QC tracking
• Optional touchscreen, barcode reader, thermal printer for streamlined workflow

Product Specifications

• Dimensions: approx. 16.5″ H × 14″ W × 12.5″ D (44 × 36 × 33 cm)
• Weight: around 14 kg / 31 lb
• Power: 90–240 VAC, 50/60 Hz; max 230 VA
• Sample Modes: Open-tube and closed-tube sampling
• Sample Volume: 10 µL per test (CBC or CBC + diff)
• Throughput: Up to 60 tests per hour (open tube); 55 per hour (closed tube)
