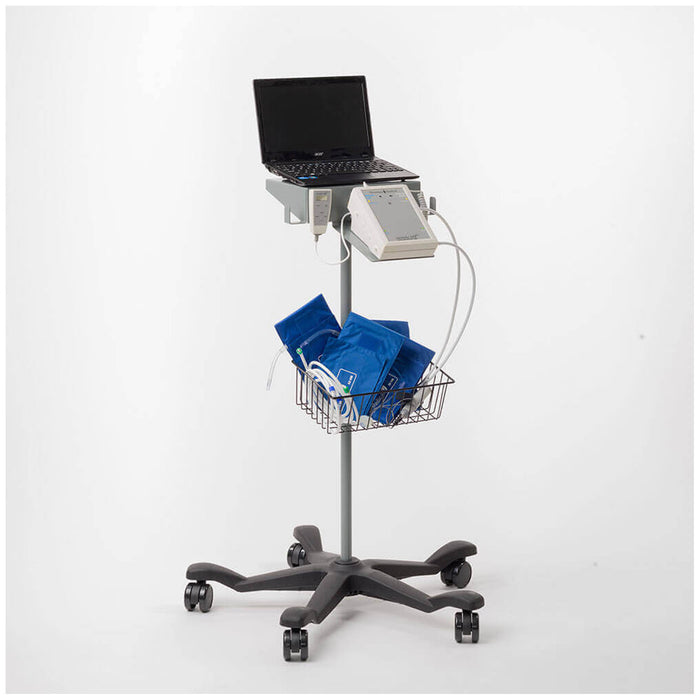

Newman simpleABI-450CL Automated Cuff-Link System

The Newman simpleABI 450CL Automated Cuff-Link System is a single-level, exercise-capable vascular testing device that automates ankle‑brachial index (ABI), toe‑brachial index (TBI), and stress exams. With PC‑based reporting and remote control, it streamlines PAD diagnostics while minimizing operator error.

Overview

Designed for early PAD detection, the 450CL performs ABI, ABI-Q, TBI, exercise ABI, and treadmill stress protocols. Its 4-port automated cuff-link system simplifies inflation cycles, while intuitive software offers full-page reports with CPT/ICD coding and DICOM/EMR integration. Mounted on a height-adjustable rolling stand, it enables efficient use across clinical settings.

Key Features

• Single-level + exercise exams: Supports ABI, ABI-Q, TBI, and exercise/stress testing using treadmill protocols
• Automated 4-port cuff system: Controls cuff selection, inflation, and deflation to reduce manual handling
• Remote control interface: Wireless handset displays pressure and enables simple push-button operation
• Advanced reporting software: Auto-calculates indices, embeds CPT/ICD codes, timestamps, logos, and saves PDF/CSV/DICOM files
• Doppler and PPG-compatible: Includes 8 MHz Doppler probe; PPG probe also supported
• Portable stand: Height-adjustable, five-legged roll stand with cuff storage basket
• Two-year warranty: Covers parts, labor, and accidental damage

Product Specifications

• Model: simpleABI-450CL
• Cuff ports: 4-port automated selection
• Included cuffs: 2×10 cm, 2×12 cm, 2×2.5 cm digit cuffs
• Probes: 8 MHz Doppler (standard); PPG probe included
• Tests supported: ABI, ABI-Q, TBI, exercise ABI, treadmill stress ABI
• Stand dimensions: 42″ height; system weight ~12 lb
• Operating temperature: 10–40 °C; humidity 30–75%
• Transport/storage: −20 to 50 °C; 5–90% humidity (non-condensing)
• Power: AC power; optional virtual remote backup
• Compliance: CPT codes 93922 (ABI), 93923/93924 for stress tests; IEC 60601 certified; US-made quality

Ideal For

• Vascular labs, cardiology clinics, and primary care offices
• Mobile health and community screening programs
• Practices requiring CPT-reimbursable, exercise-capable PAD testing
• Facilities with EMR/DICOM integration needs
• Providers who prefer automated workflows with minimal training
