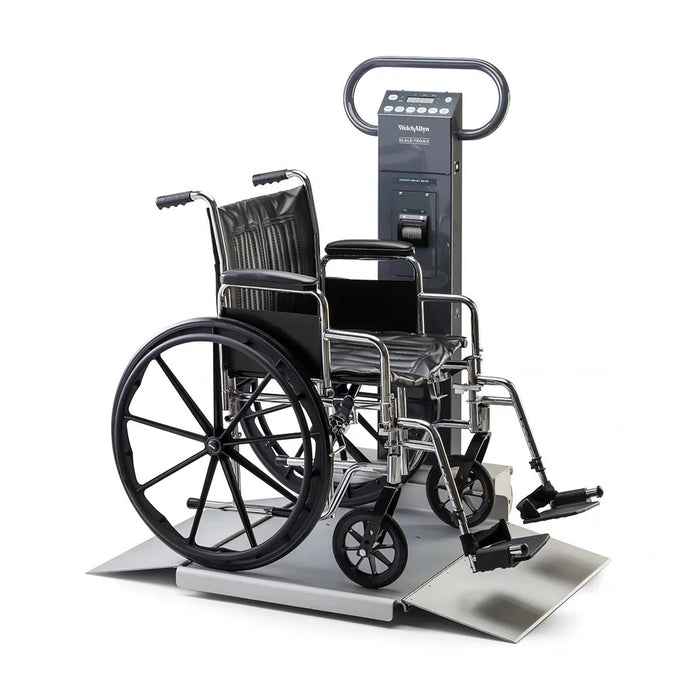

Welch Allyn Scale-Tronix 6702W Oversized Wheelchair Scale

The Scale‑Tronix 6702W Oversized Wheelchair Scale is a robust and versatile weighing system that accommodates wheelchairs, seated chairs, and standing patients. Designed for bariatric and mobility-impaired use, it offers a wide, low-profile platform and smooth portability for accurate, safe measurements in clinical settings.

Overview

Featuring a spacious 28″ × 32″ platform, this scale easily accepts standard and bariatric wheelchairs. Its low-profile deck minimizes fall risk and enables automatic zeroing between uses. Powered by six D‑cell batteries and equipped with heavy-duty casters, it supports continuous weighing in hospitals, rehabilitation centers, and outpatient clinics. Optional features include built-in printer, RS‑232/USB data port, and line‑cord power supply.

Key Features

• Oversized platform: 28″ W × 32″ D low-profile deck fits a wide range of wheelchairs
• Triple-use design: Wheelchair, chair, and stand-on modes in a single system
• Automatic zeroing: Instantly resets between weighings without manual input
• Continuous use: Supports rapid successive weights with recall and reweigh functions
• Portable mobility: Equipped with heavy-duty wheels and stainless steel handrail option
• Power versatility: Runs on six D‑cell batteries or optional AC power via IEC cord
• Data connectivity: Optional RS‑232 port, USB, and printer upgrades for EMR integration

Product Specifications

• Platform dimensions: 28″ × 32″ × 2″ (low-profile) – rugged yet accessible for wheelchair users
• Weight capacity: 880 lb / 400 kg
• Readability: 0.1 lb / 100 g
• Display: Digital LED, lb/kg selectable
• Power source: Six D‑cell batteries (≈20,000 weighings), AC line-cord optional
• Functions: Automatic zero, weight recall, reweigh, low-battery and audible weight signal
• Mobility: Heavy-duty rubber wheels for easy transport
• Connectivity & options: RS‑232/USB port, built-in thermal printer (optional)
• Weight: Approximately 100 lb (45 kg)
• Warranty: One-year standard manufacturer coverage

Ideal For

• Hospitals, bariatric care units, and rehabilitation centers
• Outpatient clinics and mobility-impaired patient wards
• Facilities requiring fast, successive weighing
• Settings needing wheelchair-accessible, low-risk scale platforms
• Clinics integrating weight data with EMR systems
