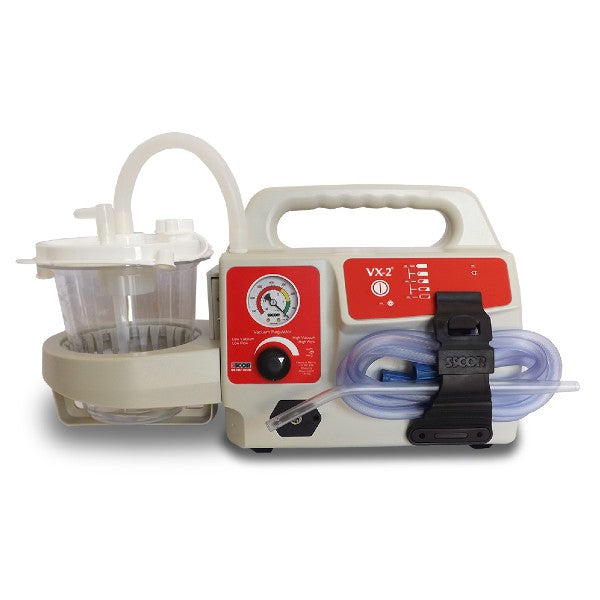

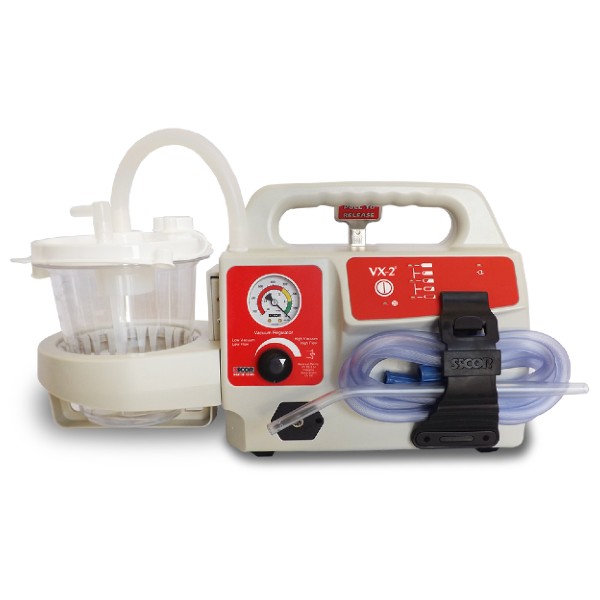

The SSCOR VX-2 is a lightweight, powerful and "firefighter" tough, battery powered suction unit that acts as both a portable and onboard suction! The VX-2 is powerful enough to meet state, national and international standards for portable suction equipment (>30 lpm airflow and >525mmHg negative pressure).

Mount the VX-2 to the action wall to use as an onboard suction device.  When removed from its bracket, it is a portable suction device used outside the vehicle!

Mount the VX-2 or release the VX-2 from the SAE J3043 bracket with one hand!  Once on the bracket, the VX-2 is automatically connected to charging and running power.

The outward facing control panel indicates vacuum level, battery condition, connection to power and lets the user know the pump is running.  Charging is controlled for maximum battery life and the PC board protects the battery from deep discharge.

The variable regulator allows the negative pressure to be adjusted quickly between <50 to >525mmHg with a quarter turn of the knob to provide reduced vacuum for tracheal and pediatric procedures as well as vacuum less than 50mmHg for neonates.

NOTE:  The VX-2 is designed for battery operation or operation from vehicle power.  The AC charger provided with the VX-2 is for charging purposes only and it will not power the VX-2.

FEATURES:

• • Compliant with SAE J3043 standards*
  • When the device is on the charging/retention bracket the device runs using the vehicle battery and uses the vehicle battery to charge the internal sealed lead acid battery
  • The device can be removed from the charging /retention bracket with one hand
  • Fully adjustable regulator and gauge. Achieves negative pressure ratings to any point between <50mmHg to >525mmHg to perform a full range of suction procedures
  • Well protected yet easily accessible suction canister
  • Outward facing controls allow the operator to easily operate the device while it is on the charging/retention bracket.
  • IPX4 rated for resistance to ingress of fluids
  • Internal battery care system with external indicators
  • Ramps up incoming voltage to optimally charge the battery
  • Provides a float charge when the battery is fully charged to avoid over-charging
  • Disconnects a depleted battery to avoid destructive deep discharge
  • LED indicators on the front panel show battery condition
  • Sealed Lead Acid Battery makes replacing the battery affordable. SSCOR will replace the battery free of charge if the battery does not perform to specifications within three years of purchase (SSCOR VX-2 with Charging/Retention Bracket only)
  • The SSCOR VX-2 with Charging/Retention Bracket series is not recommended for hospital use

NOTE: If you purchase a SSCOR VX-2 without the charging/retention bracket you cannot retrofit the device to accommodate the bracket at a later date.

SPECIFICATIONS:

• Performance: Clinical Airflow Rating > 30lpm Variable Regulator and Gauge provides negative pressure readings between <50mmHg to >525mmHg
• Battery Run Time: 45 minutes (+/- 10%) when fully charged at full capacity
• Battery Condition Indicators: LED indicators show battery level of charge
• Internal Battery Charger: Charges the battery from AC or DC power source. Charges the internal sealed lead acid battery and disconnects a depleted battery to avoid a deep discharge. LED’s indicate charging status and remaining run time on internal battery.
• Charging/Retention Bracket: Secures the device to a force of 25G, EN 1789 compliant and SAE J3043 compliant.*
• Ingress Protection: IPX4

Conforms To: ETL listed and conforms to ISO 10079-1, UL 60601-1, EN 60601-1-2, CSA C22.2 No. 601.1 – M90, IPX4 per IEC 60529, SAE J3043, EN 1789.

Warranty: 1 Year w/ charger, 6 months without
