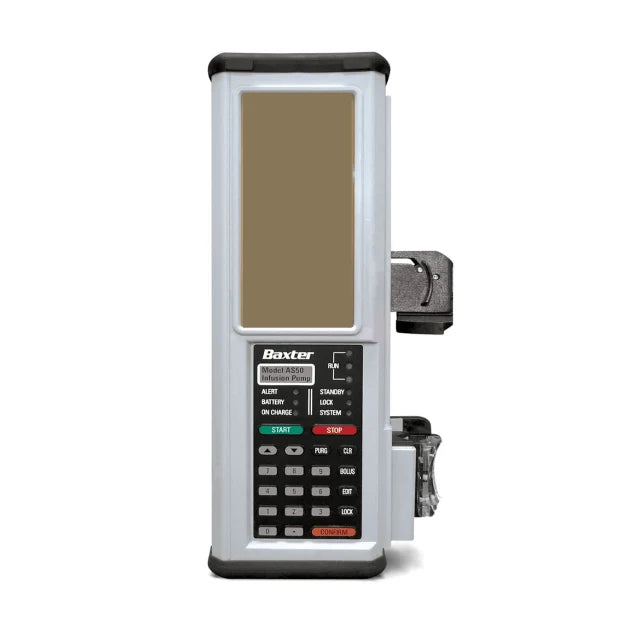

The Baxter AS50 Auto Syringe Pump is a compact and versatile infusion device designed to deliver precise, controlled infusions in various healthcare settings, including hospitals, outpatient clinics, and surgical centers. Engineered to meet the dynamic needs of modern clinical environments, the AS50 offers reliable performance for both continuous and intermittent infusion therapies.

Overview

The Baxter AS50 Auto Syringe Pump provides accurate, continuous, or intermittent infusion of intravenous solutions, drug solutions, whole blood, and packed red blood cells. It is indicated for infusion via intravenous (IV), intra-arterial (IA), epidural, or subcutaneous routes of administration. The pump accepts standard disposable syringes from 1 mL to 60 mL in size and features a user-friendly interface with a numeric keypad and multi-field LCD display for straightforward programming and monitoring. Safety features include pre-programmable bolus operation, dose titration without interruption of fluid flow, and easily understood alarm and alert messages. An optional RS-232 communication port allows for remote computer control and monitoring capabilities.

Key Features

• Compatible with standard disposable syringes ranging from 1 mL to 60 mL
• Programmable infusion rates from 0.01 to 438 mL/hr for precise fluid delivery
• Supports continuous and intermittent infusion modes
• Pre-programmable bolus function and dose titration without interrupting fluid flow
• Multi-field LCD display with numeric keypad for intuitive programming
• Built-in alarms and alerts for enhanced patient safety
• Optional RS-232 serial communication port for remote control and monitoring
• Compact and lightweight design suitable for various clinical environments

Product Specifications

• Dimensions: 3.4" W x 2.6" D x 10" H (8.6 cm x 6.7 cm x 25 cm)
• Weight: Approximately 3.2 lbs (1.45 kg)
• Flow Rate Range: 0.01 to 438 mL/hr (depending on syringe size)
• Flow Rate Accuracy: ±3% of full-scale plunger travel (excluding syringe tolerance)
• Volume Accuracy: ±3% or 0.007" of travel, whichever is greater (excluding syringe tolerance)
• Power Requirements: AC 105–125V, 60 Hz (battery charger); DC internal rechargeable battery pack
• Battery Life: Approximately 5 hours at 100 mL/hr or 12 hours at 2 mL/hr using a 60 mL syringe, following a full charge
• Operating Temperature Range: 50°F to 104°F (10°C to 40°C)
• Construction: Water-resistant, high-impact plastic case with removable protective bumpers

Ideal For

• Hospitals and acute care facilities
• Outpatient clinics and surgical centers
• Emergency departments and trauma centers
• Oncology and infusion therapy centers
• Long-term care and rehabilitation facilities
• Home healthcare settings
