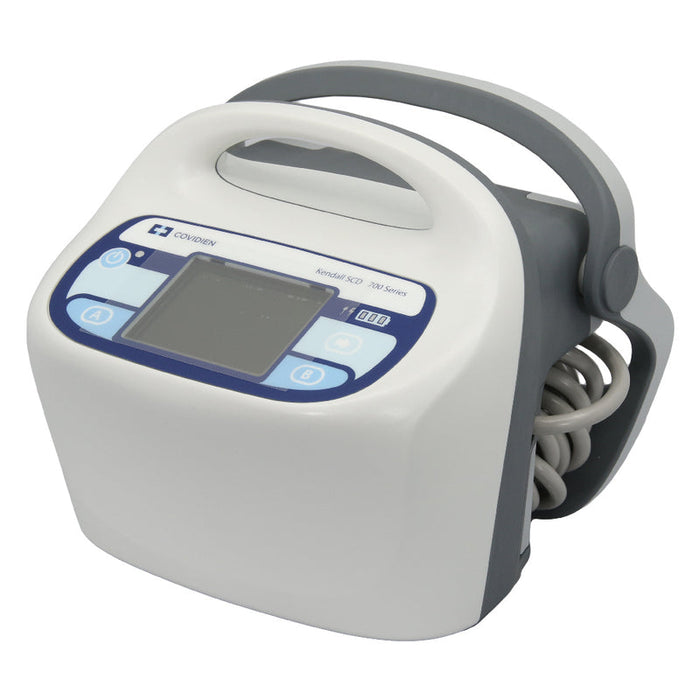

The Kendall SCD™ 700 Smart Compression™ Controller is an advanced pneumatic compression system designed to aid in the prevention of venous thromboembolism (VTE), including deep vein thrombosis (DVT) and pulmonary embolism (PE). Ideal for use in hospitals, surgical centers, and outpatient facilities, this device delivers personalized, data-driven therapy to enhance patient outcomes and support clinical compliance initiatives.

Overview

Engineered with Smart Compression™ technology, the SCD 700 system utilizes Vascular Refill Detection (VRD) to tailor compression cycles to each patient's unique physiology. Its intuitive 3.2-inch color LCD interface, animated alerts, and quiet operation streamline usability for clinicians while promoting consistent therapy delivery. The system supports both leg and foot compression, with bilateral or unilateral application options, and includes a battery backup for uninterrupted therapy during patient transport or power interruptions.

Key Features

• Smart Compression™ Cycles: Automatically adjusts compression based on real-time venous refill measurements for optimized therapy.
• Patient Sensing™ Technology: Detects whether sleeves are properly applied and actively monitors wear time to support compliance tracking.
• Animated Alerts: Visual cues with resolution prompts guide users through error identification and correction.
• Quiet Operation: Vibration dampeners and soft overmolding minimize noise, enhancing patient comfort.
• Easy-to-Clean Design: Smooth, grooveless surfaces and a slim profile facilitate efficient cleaning protocols.
• Battery Backup: Integrated lithium-ion battery provides up to 6–8 hours of operation, ensuring continuous therapy during transport.
• Versatile Application: Supports both leg sleeves and foot cuffs, accommodating various patient needs.

Product Specifications

• Dimensions: 6.8" H x 7.7" W x 4.5" D (11.4" D when free-standing)
• Weight: 5.0 lbs (2.3 kg)
• Compression Type: Sequential, gradient, circumferential (leg sleeves); uniform (foot cuffs)
• Set Pressure: 45 mmHg (leg sleeves); 130 mmHg (foot cuffs)
• Power Requirements: 100–240 VAC, 50VA, 50/60 Hz
• Battery: 10.8V, 2200mAh lithium-ion; 6–8 hours runtime; 4-hour recharge time
• Compliance Monitoring: Displays true wear time by nursing shift; alerts for sleeve removal
• Standards Compliance: UL60601-1, CSA-C22.2 No. 601.1-M90, IEC 60601-1-2:2007

Ideal For

• Hospitals and acute care facilities
• Surgical centers and outpatient clinics
• Post-operative recovery units
• Rehabilitation and long-term care facilities
• Home healthcare settings (with appropriate prescription)
