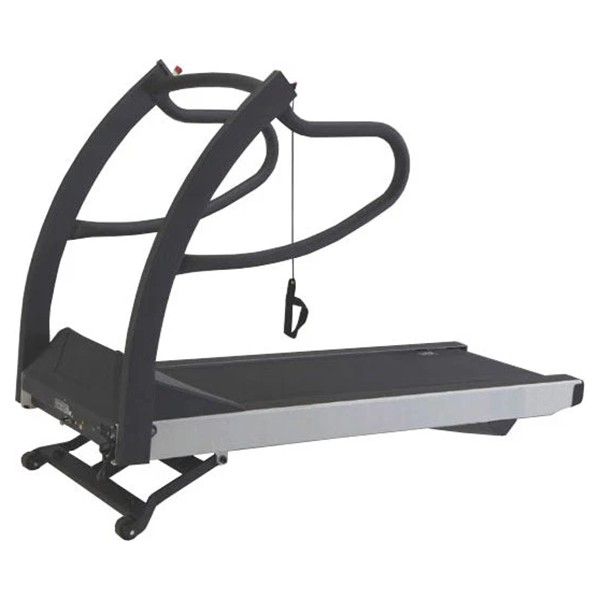

Welch Allyn TMX428 Full Vision Trackmaster Treadmill

The Welch Allyn TMX428 Full Vision Trackmaster Treadmill is a medical-grade treadmill engineered specifically for cardiac stress testing. Built for durability and precision, this treadmill integrates seamlessly with ECG and diagnostic systems, offering smooth, quiet operation and safety features tailored to clinical use.

Overview

Designed for use in hospitals, cardiology clinics, and diagnostic labs, the TMX428 features a powerful zero-start drive system, self-calibrating incline control, and a large cushioned walking surface. Its user-focused design ensures safe, accurate stress testing with full compatibility for integration into cardiac diagnostic workflows.

Key Features

• Zero-start 4 HP motor: Provides smooth and controlled acceleration from a standstill.
• Self-calibrating incline: Offers up to 25% grade adjustment with precise control.
• Large walking surface: 22″ × 63″ belt with shock-absorbing deck for patient safety and comfort.
• MasterTrack belt alignment: Keeps the belt properly centered throughout testing.
• Emergency stop system: Includes stop button and safety tether that locks the belt when activated.
• Connectivity ports: USB and RS-232 ports for direct connection to ECG/stress systems.
• Low-profile design: 7″ deck height for easy patient access and increased safety.
• High weight capacity: Supports patients up to 500 lbs.

Product Specifications

• Motor: 4 HP continuous duty, 6 HP peak
• Speed range: 0.5 to 12 mph (adjustable in 0.1 mph increments)
• Incline range: 0% to 25%, self-calibrating
• Running surface: 22″ W × 63″ L
• Deck height: 7″ (low profile)
• Weight capacity: 500 lbs (227 kg)
• Treadmill weight: Approximately 425 lbs (193 kg)
• Dimensions: 33″ W × 78.5″ L
• Power: 110–120V or 220–240V (depending on configuration)
• Connectivity: USB and RS-232 ports

Ideal For

• Hospitals and cardiology departments
• Outpatient diagnostic centers
• Cardiac rehabilitation programs
• Facilities conducting ECG-guided stress testing
• Clinics needing reliable and safe treadmill performance
