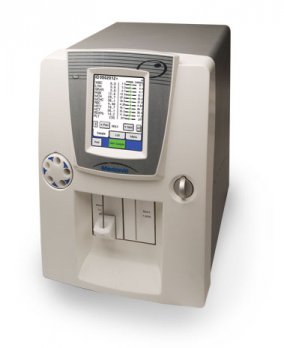

CDS Medonic M-Series Hematology Analyzer

The CDS Medonic M‑Series is a reliable, medium-throughput hematology analyzer offering rapid, accurate complete blood counts (CBC) with a 3-part white cell differential. Designed for clinical labs, outpatient centers, and point-of-care settings, it processes up to 60 samples per hour with minimal maintenance.

Overview

Featuring a user-friendly color touchscreen and barcode scanning, the M‑Series delivers full CBC results in under 45 seconds. It supports open vial, cap-pierce, or autoloader configurations, enabling flexible workflow integration. Zero daily maintenance and automated quality control simplify routine use, while the compact design supports ease of placement in constrained lab environments.

Key Features

• Fast throughput: Up to 60 samples/hour with ~45-second analysis time per sample
• 16–20 parameters: Includes RBC, WBC, HGB, HCT, PLT, MCV, MCH, MCHC, RDW, and 3-part differential counts
• Sampling flexibility: Available with open vial, cap-pierce, or autoloader options
• Touchscreen interface: Color display with step-by-step guidance and histogram output
• Barcode scanning: Supports sample and patient ID to reduce transcription errors
• QC & maintenance: On-board quality control and no daily shutdown required
• Compact footprint: Approximately 18″ × 18″ × 18″ and weighing around 100 lb

Product Specifications

• Analysis time: ≤ 45 seconds (≤ 50 seconds on some versions)
• Parameters measured: 16–20 including RBC, HGB, HCT, PLT, WBC differential
• Throughput: 60 samples/hour (standard); up to 66 samples/hour with autoloader
• Sample volume: Finger‑stick (≈ 20 µL) or venous tubes depending on configuration
• Display: LCD color touchscreen with histogram and workflow prompts
• Interfaces: Barcode reader, optional printer; data export capabilities
• Maintenance: Zero daily maintenance; on-board QC with control memory
• Dimensions: ~18″ D × 18″ W × 18″ H (460 mm each side)
• Weight: ~100 lb (45 kg; ~1600 oz)
• Certifications: FDA-cleared, CLIA moderate complexity

Ideal For

• Clinical laboratories and hospital point-of-care testing areas
• Outpatient clinics and physician offices requiring rapid CBC results
• High-volume testing environments using cap-pierce or autoloader systems
• Settings needing hassle-free daily operation with minimal maintenance
• Facilities requiring compact, user-friendly hematology analyzers
