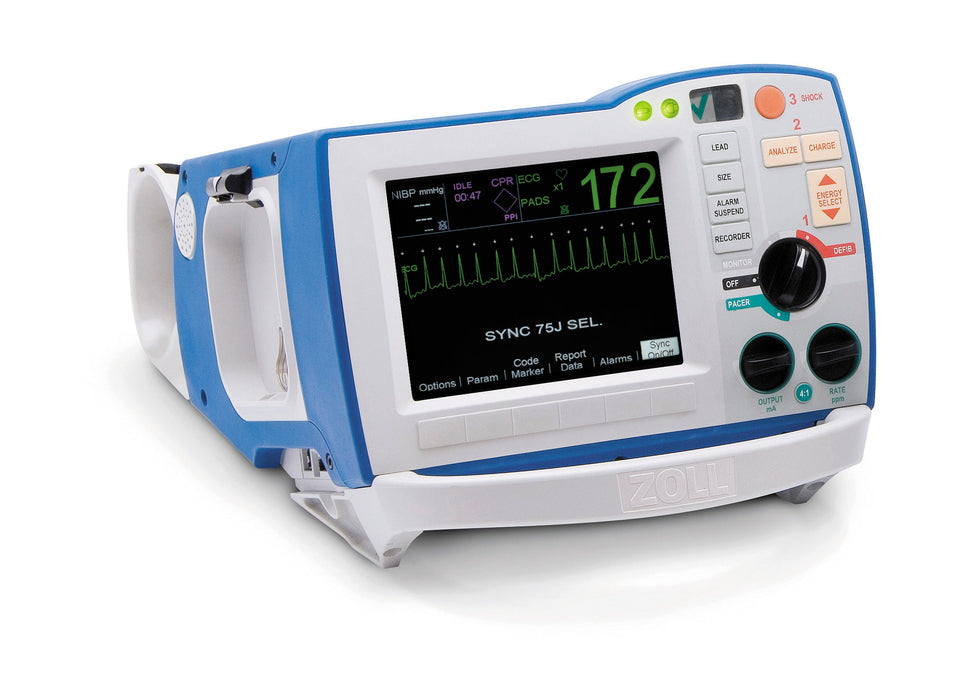

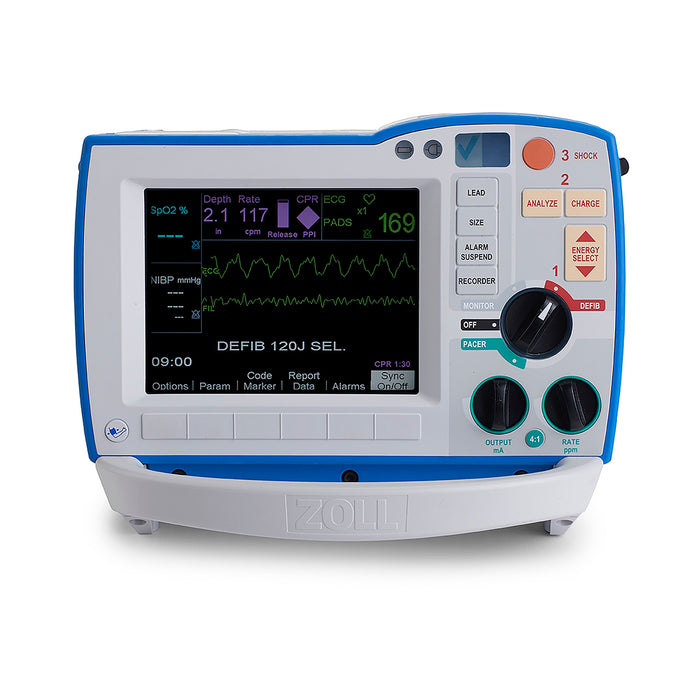

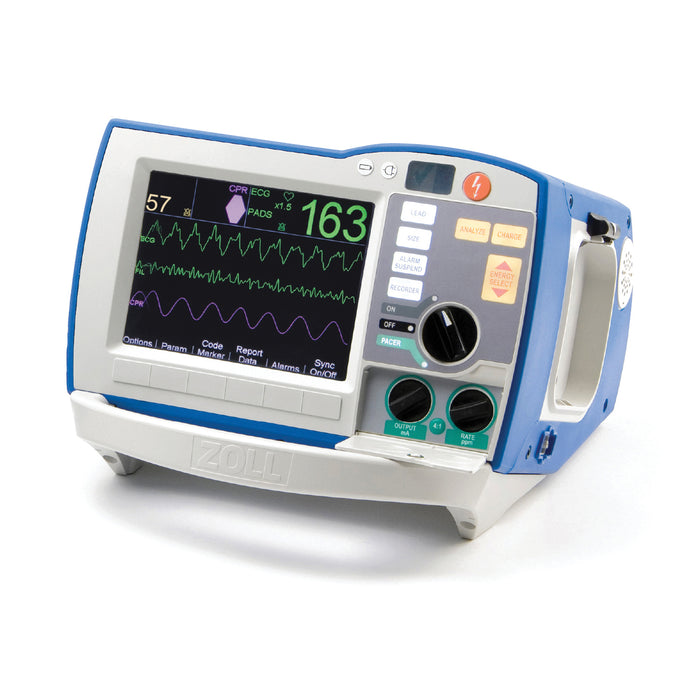

Zoll R-Series ALS Defibrillator
The ZOLL R‑Series ALS Defibrillator is an advanced monitor-defibrillator combining AED simplicity with full Advanced Life Support capabilities. Featuring ECG, pacing, SpO₂, NIBP, EtCO₂, real-time CPR feedback, and wireless data connectivity, it's ideal for hospital, EMS, and critical care environments.
Overview
Users start with a one-button AED mode that automatically transitions to full manual defibrillation and pacing when needed. Real CPR Help® provides live visual and audio guidance on compression quality, while See‑Thru CPR® allows rhythm analysis during compressions. The device includes a full monitoring suite—ECG (3/5‑lead), SpO₂, NIBP, EtCO₂—and uses OneStep™ electrodes that consolidate ECG, pacing, and defibrillation functions. Wireless dashboard support ensures seamless fleet readiness and data management.
Key Features
- AED with manual upgrade: One-button operation for untrained users; manual control is instantly available.
- Real CPR Help® & See‑Thru CPR®: Guides optimal compression depth/rate and enables rhythm checks without pauses.
- OneStep™ electrode system: One pad set for ECG, manual pacing, and defibrillation—no separate cables required.
- Advanced monitoring: ECG (3/5‑lead), SpO₂, NIBP, and EtCO₂ support full ALS diagnostics.
- Pacing support: Integrated external pacing via OneStep electrode.
- Impedance-adaptive therapy: 1–200 J rectilinear biphasic shocks with fast (< 7 sec) charging.
- Fleet management: Daily self-tests, Wi‑Fi-enabled Defibrillator Dashboard connectivity, data export via USB/CompactFlash.
- Pediatric-enabled: Detects pediatric electrodes and auto-adjusts energy protocols starting at 50 J.
- Rugged and portable: Color LCD, rechargeable lithium battery, lightweight and durable.
Product Specifications
- Model: R‑Series ALS (e.g., 30120009001310012)
- Energy Output: 1–200 J rectilinear biphasic
- Charge Time: < 7 seconds to 200 J (fresh battery)
- Display: 6.5″ color LCD with CPR dashboard
- Weight: ~6.2 kg (13.6 lb) without electrodes; ~6.9 kg (15.2 lb) with pads
- Dimensions: 12.5″ × 10.5″ × 8.2″ (31.7 × 26.7 × 20.8 cm)
- Monitoring: ECG (3/5‑lead), SpO₂, NIBP, EtCO₂, external pacing
- Data & Connectivity: Internal memory; CF/USB export; optional Wi Fi with Dashboard
- Battery: SurePower™ rechargeable lithium-ion; supports ~4 hours ECG or ~100 shocks
- Certifications: UL 60601, AAMI DF80, IEC 60601‑2‑4/‑2‑25/‑2‑27
- Environmental: Operational 0–40 °C, storage up to 60 °C; rugged design
- Warranty: 5 years (unit); accessories may vary
Ideal For
- Hospital code carts, EDs, cath labs, ICUs
- EMS and critical care transport teams
- Settings requiring both AED simplicity and ALS readiness
- Pediatric and adult resuscitation with auto energy adjustment
- Facilities using CPR quality reporting and fleet management systems
