Matrix Fitness Endurance ClimbMill

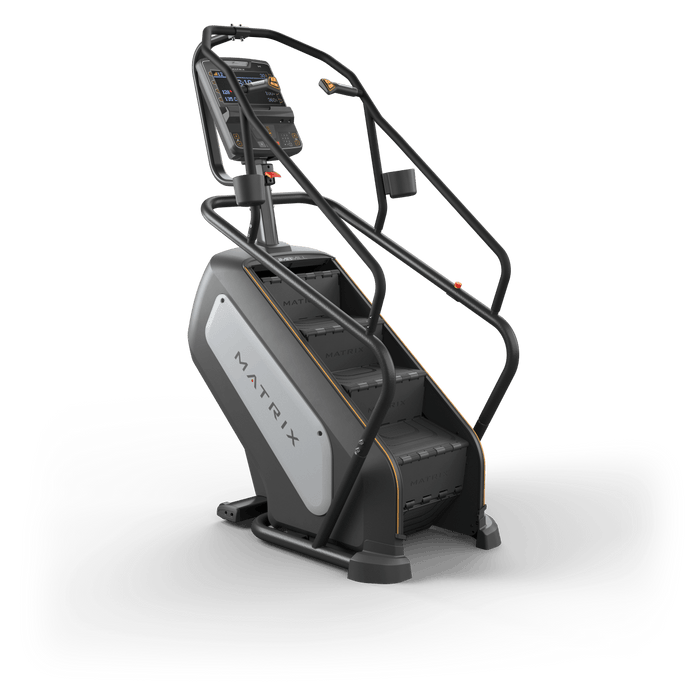

The Matrix Endurance ClimbMill is a commercial-grade stair climbing machine designed for fitness facilities seeking high-performance, low-maintenance cardio equipment. Built to withstand heavy daily use, it delivers an intense, full-body workout while maintaining low joint impact—ideal for cardio training, endurance conditioning, and calorie burning.

Overview

This ClimbMill features an industrial-grade ECB (eddy current brake) drive system, a rugged steel frame, and oversized steps with a 10-inch depth and 14-inch step-on height for user comfort and stability. With a wide resistance range of 24 to 162 steps per minute and multiple console options—including LED, Premium LED, 16-inch Touch, and 22-inch Touch XL—it caters to a range of user preferences and facility needs. Integrated safety features, a built-in sweat management system, and tool-free access panels enhance user protection and simplify maintenance.

Key Features

• Heavy-duty stepmill with 10″ deep steps and 14″ step-on height for optimal stride ergonomics
• 25 resistance levels with speed range from 24 to 162 steps per minute
• ECB magnetic braking system offers quiet, smooth resistance without belts or oil
• Modular design with tool-free side panel removal for simplified servicing
• Sweat management system keeps internal components protected

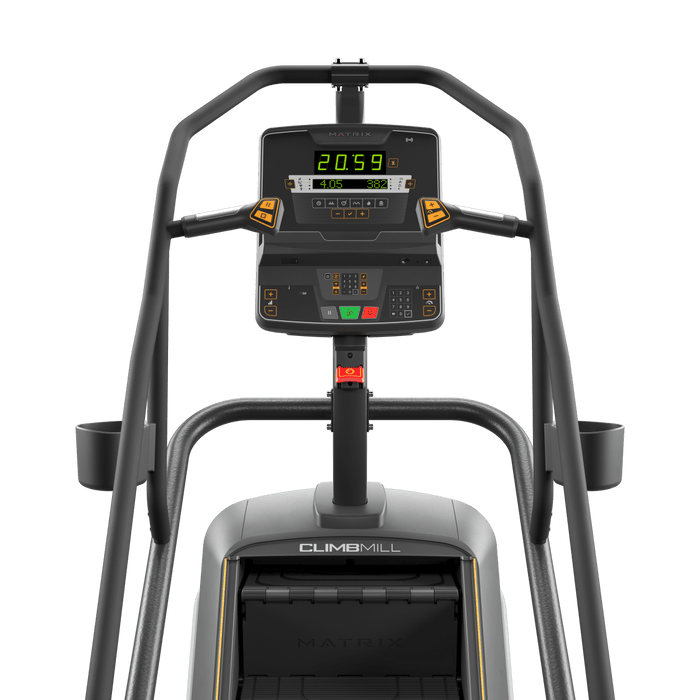

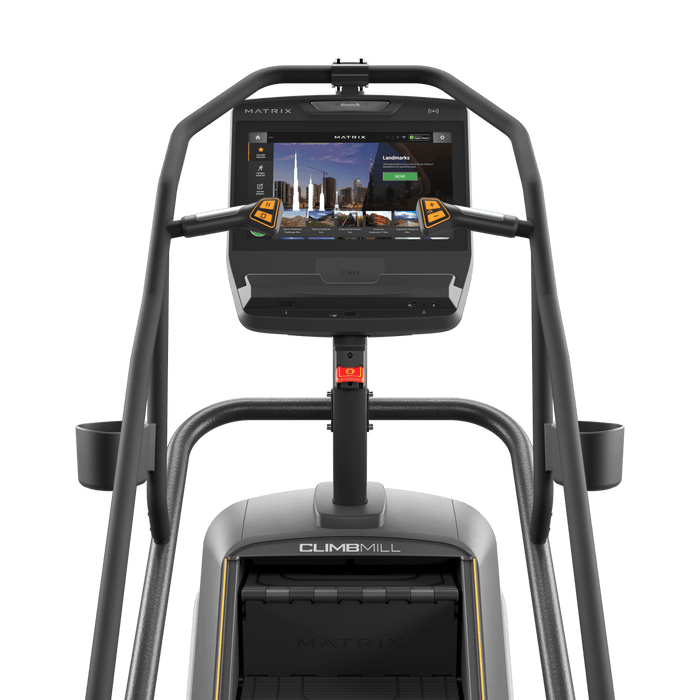

• Available with four console options: LED, Premium LED, Touch, and Touch XL
• Optional entertainment, workout tracking, and Bluetooth/Apple Watch compatibility depending on console
• Integrated transport wheels, heart rate sensors, and water bottle holder

Product Specifications

• Dimensions: 63.5″ L × 40.3″ W × 85.8″ H (161.2 × 102.4 × 218 cm)
• Step Dimensions: 10″ D × 18″ W × 8″ height (25.4 × 46 × 20.3 cm)
• Resistance Range: 24 to 162 steps per minute
• Resistance Levels: 25
• Drive System: ECB (eddy current brake), oil-free and low maintenance
• Max User Weight: 400 lb (182 kg)
• Machine Weight: Approx. 391 lb (177.4 kg)
• Power Supply: 100–240V AC, 50/60 Hz
• Certifications: Commercial-grade safety and durability standards

Ideal For

• Health clubs and commercial gyms
• Rehabilitation and sports medicine centers
• Corporate wellness facilities and hospitality fitness rooms
• Training studios and endurance-focused group classes
• Senior fitness areas seeking safe, effective cardio solutions
