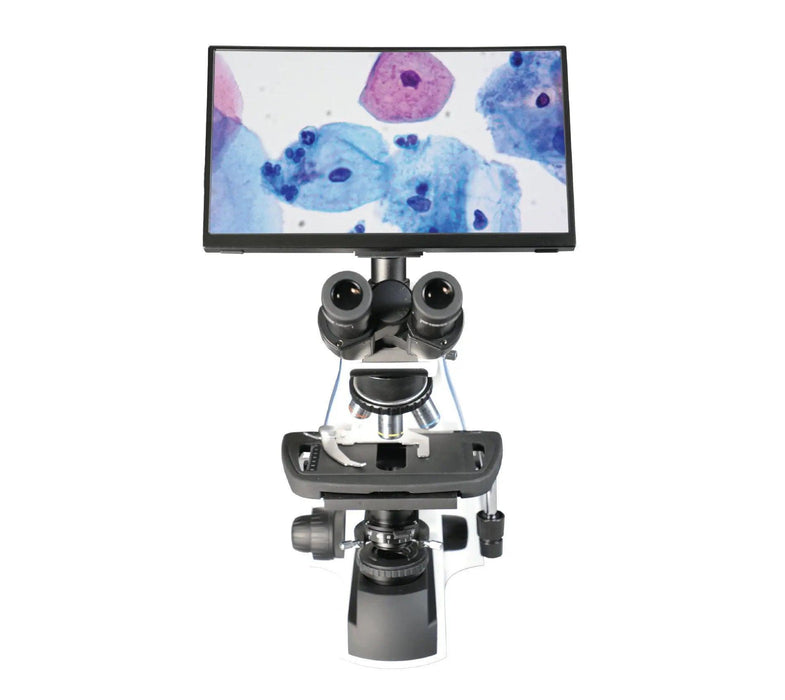

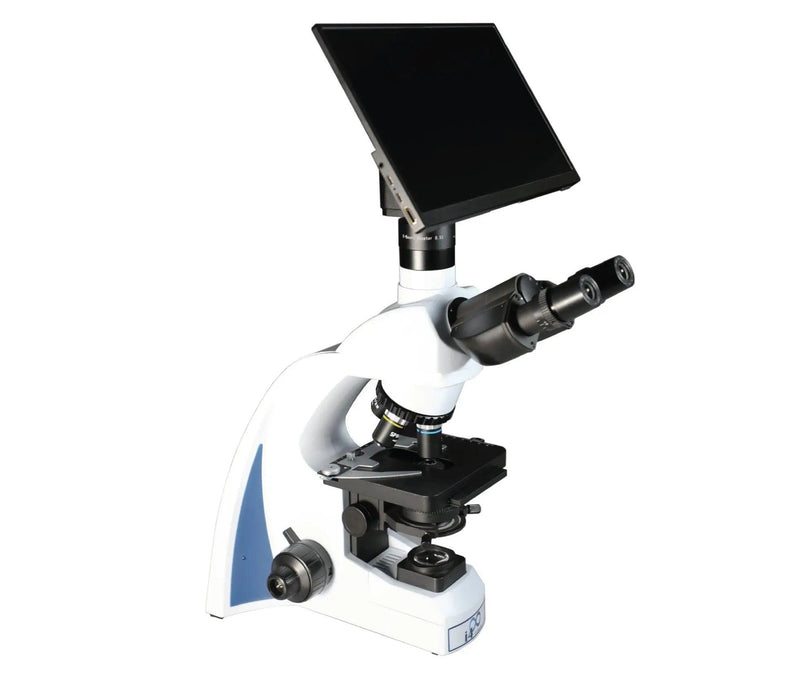

LW Scientific BioVID 1080+ Camera and 13" Monitor

The LW Scientific BioVID 1080+ Camera and Monitor Kit offers real-time, full HD imaging for microscopes, enabling high-quality visual output for research, clinical diagnostics, and educational demonstrations. With its 1080p resolution and plug-and-play functionality, this imaging solution enhances workflow in medical, veterinary, and laboratory settings.

Overview

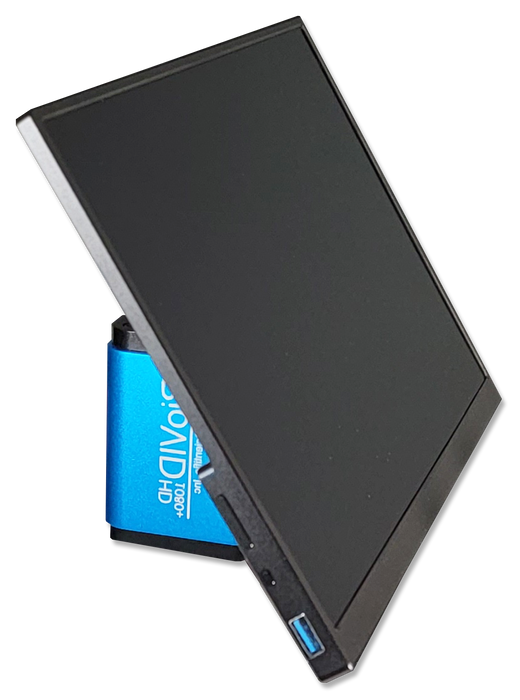

Designed to provide crystal-clear live images without the need for a computer, the BioVID 1080+ Camera connects directly to the included 11.6" HD monitor via HDMI. This setup allows for real-time viewing and documentation of specimens during microscope use. The camera also supports SD card recording and USB output, providing flexibility for documentation, collaboration, and teaching. Compatible with most trinocular microscopes, the BioVID 1080+ system is ideal for labs looking to improve accuracy and communication during microscopic analysis.

Key Features

• Delivers full 1080p HD resolution at 60 frames per second for clear, detailed images
• Connects directly to the included 11.6" LCD monitor—no computer required
• Supports HDMI, USB, and SD card output for flexible viewing and recording options
• 1/2.8” CMOS sensor ensures high sensitivity and image clarity
• Built-in SD card slot for capturing still images and video clips
• Compatible with most trinocular microscopes using C-mount interface
• Includes monitor mounting hardware and accessories for quick setup
• Made in the USA with precision optical and imaging components

Product Specifications

• Camera Resolution: 1920 x 1080 (Full HD)
• Frame Rate: 60 fps (via HDMI); 30 fps (via USB)
• Sensor: 1/2.8” Sony CMOS
• Monitor Size: 11.6" LCD (included)
• Outputs: HDMI, USB, SD card slot
• Power: 100-240V (auto-switching), 5V DC adapter included
• Mount Type: Standard C-mount
• Includes: Camera, monitor, power supply, HDMI cable, USB cable, SD card, mounting hardware
• Compliance: CE, FCC, RoHS certified

Ideal For

• Medical and hospital laboratories
• Veterinary diagnostic centers
• Biology and life science classrooms
• Research institutions and microscopy labs
• Telemedicine and remote consultation environments
