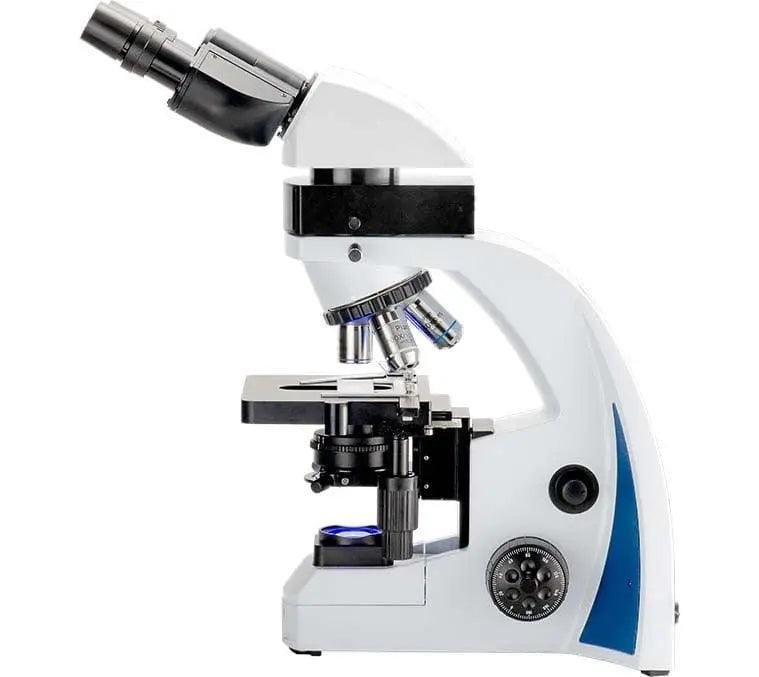

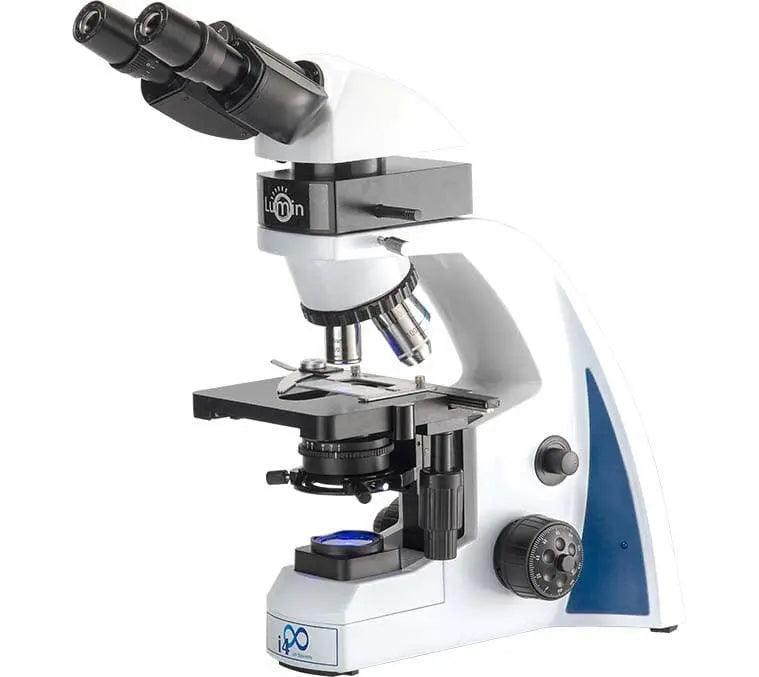

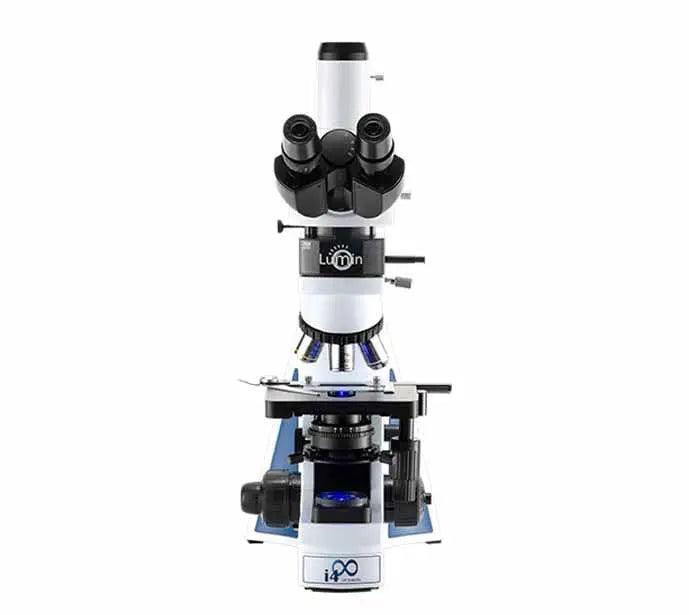

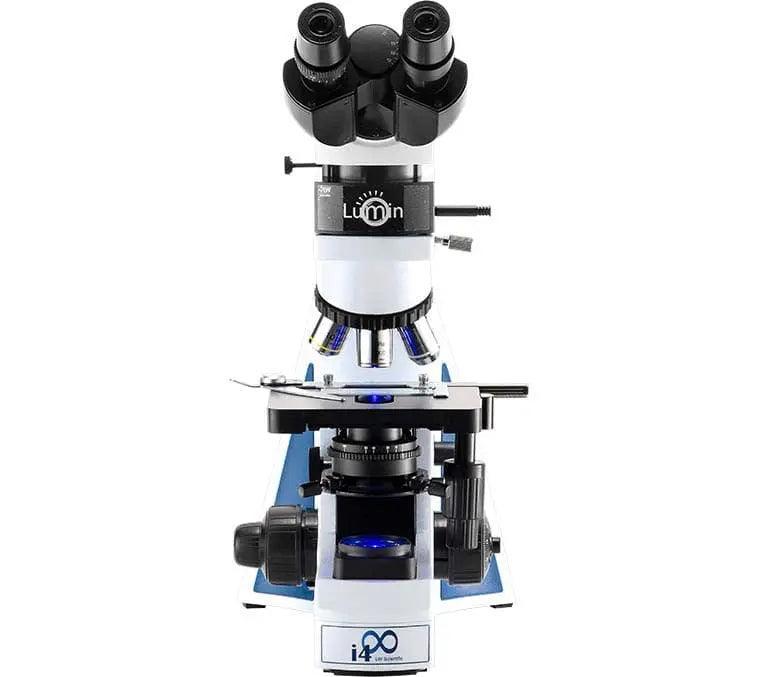

LW Scientific i4 Lumin Epi-Fluorescence Microscope
The LW Scientific i4 Lumin Epi-Fluorescence Microscope is a high-performance instrument designed for advanced diagnostic and research applications requiring fluorescence imaging. With integrated LED fluorescence modules and professional-grade optics, this microscope delivers sharp, high-contrast images without the need for external power supplies or mercury vapor bulbsmaking it safer, simpler, and more efficient for modern laboratories.
Overview
Engineered for ease of use and powerful fluorescence performance, the i4 Lumin microscope features two built-in LED modules (blue and green excitation) for viewing a wide range of fluorescent stains and markers. The infinity-corrected optical system with Plan Achromatic objectives ensures crisp image resolution, while the standard trinocular head allows for easy camera integration. Compact, quiet, and cool-running, the Lumin system is ideal for clinical diagnostics, research labs, and academic institutions performing cell biology, microbiology, or immunofluorescence studies.
Key Features
- Integrated LED fluorescence systemno external light sources required
- Includes blue (excitation 470nm) and green (excitation 525nm) LED modules
- Infinity-corrected Plan Achromatic objectives for high clarity and resolution
- Trinocular head for digital imaging and camera use
- Whisper-quiet, low-heat LED illumination for bright, even light
- Mechanical stage with low-position X-Y controls for precise slide movement
- Ideal for observing FITC, GFP, DAPI, and other fluorescent markers
- Made in the USA and designed for long-term professional use
Product Specifications
- Fluorescence Illumination: Dual integrated LEDs (Blue & Green excitation)
- Objectives: Infinity Plan Achromatic (4x, 10x, 40x, 100x oil)
- Head: Trinocular (30° inclined, 360° rotatable)
- Eyepieces: Widefield 10x with 20mm field of view
- Stage: Mechanical with low-position X-Y controls
- Condenser: Abbe condenser NA 1.25 with iris diaphragm
- Focus: Coaxial coarse and fine adjustment knobs
- Power Supply: 110V or 220V
- Weight: Approx. 20 lbs
- Warranty: 5-year limited warranty (1 year on electrical components)
Ideal For
- Clinical and diagnostic laboratories
- Cell biology and microbiology research
- Immunofluorescence and molecular biology
- Academic teaching labs and universities
- Veterinary and biomedical research applications
Warranty: 1 yr
Lead Time: 7 Days
