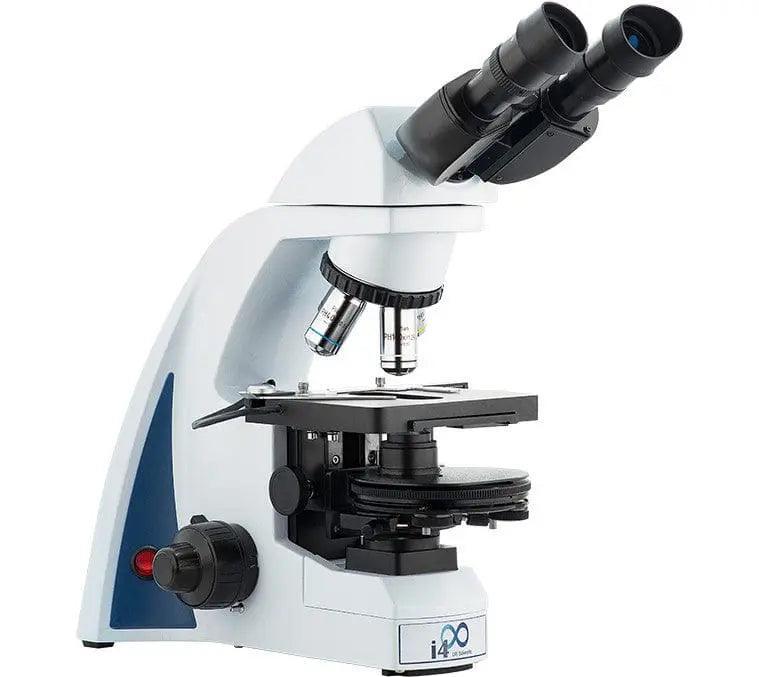

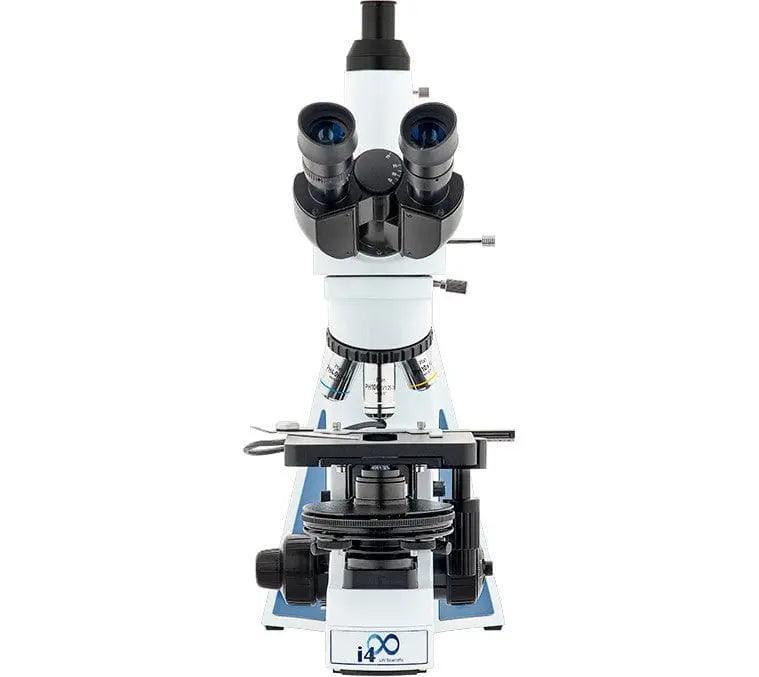

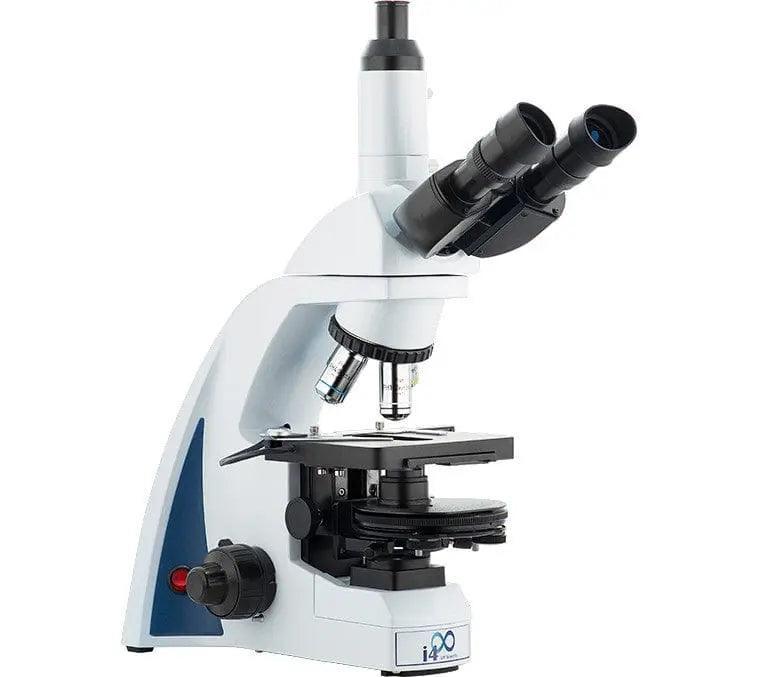

LW Scientific i4 Semen Evaluation Microscope – Built for Motility & Morphology Review

The LW Scientific i4 Semen Evaluation Microscope is a high-performance diagnostic tool designed specifically for veterinary and animal reproductive professionals. With superior optics, integrated heat stage, and enhanced LED illumination, this microscope delivers exceptional clarity and reliability for assessing sperm motility, morphology, and concentration.

Overview

Purpose-built for semen analysis, the i4 Semen Evaluation Microscope features a built-in heated stage to maintain sample viability during examination. The trinocular head supports camera integration for documentation and digital analysis, while the Plan Achromatic objectives and bright white LED lighting ensure sharp, high-contrast images. Durable construction, intuitive controls, and ergonomic design make this microscope ideal for high-use environments in veterinary clinics and breeding facilities.

Key Features

• Integrated heated stage maintains optimal sample temperature
• Infinity Plan Achromatic objectives for superior optical clarity
• Trinocular head allows for camera or imaging system integration
• Bright white LED illumination with adjustable intensity
• Mechanical stage with low-position X-Y controls for smooth slide movement
• Coaxial fine and coarse focus for precise image control
• Durable metal frame for reliable, long-term use
• Made in the USA and designed for veterinary semen evaluation

Product Specifications

• Objectives: 4x, 10x, 40x, 100x oil (Infinity Plan Achromatic)
• Eyepieces: Widefield 10x with 20mm field of view
• Head: Trinocular, 30° incline, 360° rotatable
• Stage: Mechanical with X-Y coaxial control
• Heated Stage: Built-in; maintains sample at approx. 37°C
• Lighting: LED illumination with variable intensity
• Focusing: Coaxial coarse and fine adjustment knobs
• Condenser: Abbe 1.25 NA with iris diaphragm and filter holder
• Power: 110V or 220V
• Warranty: 5-year limited warranty (1 year on electrical parts)

Ideal For

• Veterinary reproductive health clinics
• Animal breeding programs and fertility labs
• Livestock management and agricultural services
• Academic veterinary training programs
• Field and mobile veterinary diagnostic setups
