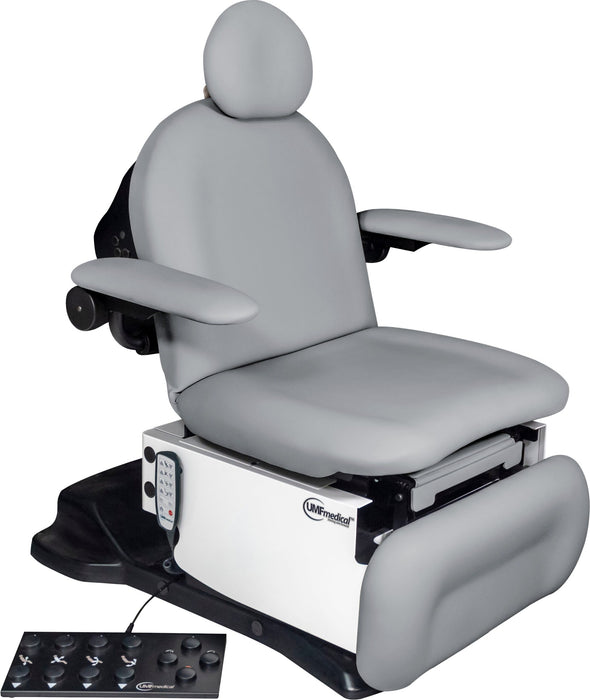

UMF Medical ProGlide5016 Podiatry/Wound Care Procedure Chair

The UMF Medical ProGlide5016 is a premium podiatry and wound-care procedure chair featuring four power functions—seat height, backrest, tilt, and leg extension—along with programmable hand/foot controls and OneTouch WheelBase®. Designed for ADA accessibility and infection control, it supports up to 650 lb and offers seamless clinical workflows.

Overview

Built on a durable steel frame with dual actuator technology, the ProGlide 5016 provides smooth electric adjustment from a low 18.5″ ADA-compliant seat height up to 37″. Both hand and foot controls include two programmable presets and return-to-home functionality. With an extendable leg rest, articulating head support, pull-out stainless drain pan, hospital-grade power outlet, and cleanable upholstery, it’s designed to streamline patient care and room turnover.

Key Features

• Four power functions: Power-adjustable seat height, backrest, tilt, and leg extension
• Dual positioning controls: Hand and foot OneTouch Patient Positioning® with two presets and home return
• ADA-compliant design: Low seat entry at 18.5″ supports wheelchair access
• Leg‑centric setup: 28″ W × 13″ D leg rest for podiatry and wound care procedures
• Enhanced patient support: Double-articulating, interchangeable headrest
• Infection control upholstery: Removable seamless PreFixx® vinyl cover
• Fluid management: Stainless-steel pull-out drain pan
• Easy mobility: OneTouch WheelBase® central-lock caster system
• Integrated power: Hospital-grade 110 V outlet with child-safe cover
• Heavy-duty capacity: Supports up to 650 lb (295 kg)

Product Specifications

• Model: 5016‑650‑300
• Height range: 18.5″–37″ seat height
• Seat width: 28″ (71 cm); Back width: 26.5″ (67 cm)
• Length: 73″ nominal; extends to 80″ with leg section
• Leg rest: 28″ W × 13″ D
• Net weight: 421 lb (191 kg); Shipping weight: 461 lb (209 kg)
• Electrical: 120 VAC, 60 Hz (220/240 VAC optional)
• Certifications: UL 60601-1, CSA‑22.2 certified
• Warranty: 3-year limited

Ideal For

• Podiatry, wound care, and foot & ankle procedures
• Facilities requiring ADA-compliant, heavy-duty seating solutions
• High-volume clinics needing programmable positioning and efficient room turnover
• Environments emphasizing infection control and easy cleanup
• Practices caring for large or mobility-impaired patients
