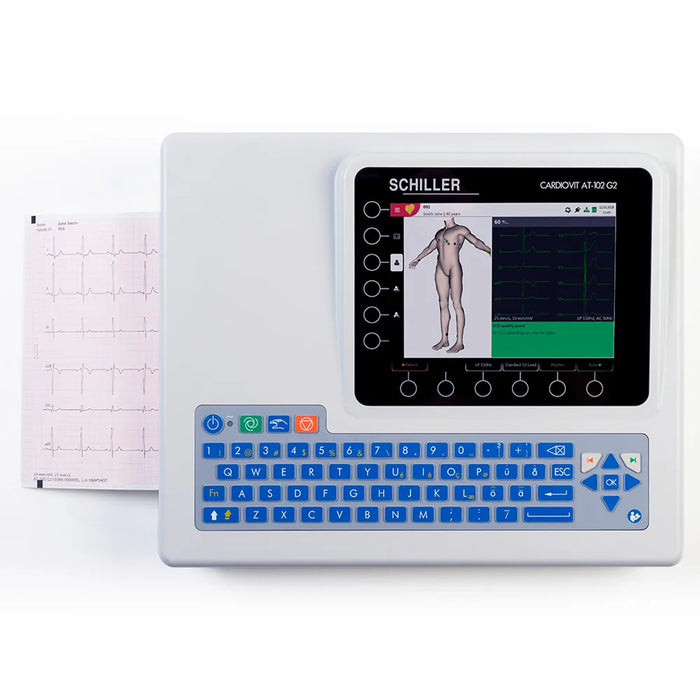

Schiller Cardiovit AT-102 G2 ECG System

The Schiller CARDIOVIT AT‑102 G2 is a modern, touchscreen 12‑lead ECG system designed for clinics, hospitals, and mobile cardiology settings. Equipped with advanced diagnostic tools and seamless connectivity, it supports rapid, accurate cardiac assessments with ergonomic simplicity.

Overview

Featuring an 8″ high-resolution color display, sealed alphanumeric keyboard, and fast battery operation (over 8 hours), the AT‑102 G2 ensures reliable ECG performance. It captures full 12‑lead recordings simultaneously with a high sampling rate (up to 32 kHz) and broad signal bandwidth, making it suitable for adult and pediatric use. Built-in bidirectional Wi‑Fi and Ethernet enable efficient, paperless workflows via HIS/EMR systems, while optional modules support ETM interpretation, exercise ECG, spirometry, and worklist integration.

Key Features

• 8″ color touchscreen: Intuitive navigation with touch keys and sealed keyboard for easy cleaning.
• High-fidelity ECG: 32 kHz sampling rate and 250 Hz bandwidth for clinical-grade signal clarity.
• Extended battery life: More than 8 hours of continuous operation, including rhythm mode.
• Hook-up adviser: Color-coded waveforms & anatomical model guide electrode placement.
• Lead-reversal detection: Automatic alerts to prevent placement errors.
• Flexible connectivity: Wi‑Fi/LAN, PDF/DICOM/HL7 export, and bi-directional EMR/HIS integration.
• Internal thermal printer: Built-in A4 thermal printer for customizable printouts.
• Optional modules: ETM & ETM Sport interpretation, CCAA, basic exercise ECG, spirometry, worklist support.

Product Specifications

• Leads: Simultaneous 12‑lead acquisition
• Display: 8″ color LCD, resolution 1024×768
• Sampling rate: Up to 32,000 Hz; bandwidth up to 250 Hz
• Memory: 350 resting ECGs; 100 rhythm recordings (up to 10–20 min)
• Battery: Li-ion 11.25 V/6.4 Ah; ~3.5 h recharge; 8 h runtime
• Printer: 210 mm thermal A4 (40 mm/s speed)
• Dimensions: 384 × 319 × 90 mm (~4.5 kg)
• Power: 100–240 VAC; 1.3–0.7 A
• Connectivity: 2×USB, Ethernet, RS‑232, Wi‑Fi
• Certifications: CE, FDA, Class I, Type BF
• Warranty: 3 years full coverage

Ideal For

• Cardiology and general practice clinics
• Pediatric and adult diagnostic environments
• Mobile units and bedside cardiac assessments
• Facilities requiring EMR-integrated, paperless ECG workflows
• Clinicians seeking fast interpretation and flexible testing options
