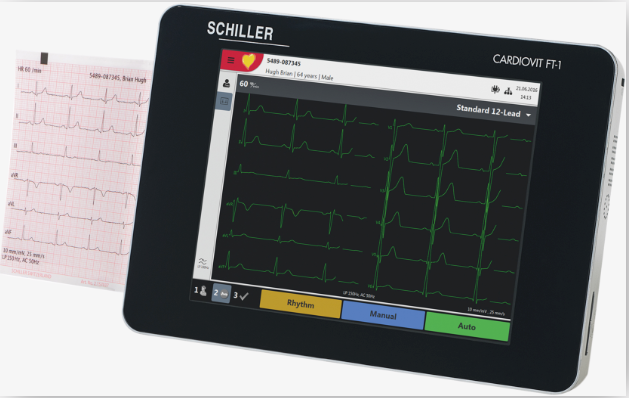

Schiller CARDIOVIT FT-1 ECG System

The Schiller CARDIOVIT FT‑1 is a lightweight, portable 12‑lead ECG system featuring an 8″ high-resolution touchscreen and integrated thermal printer. Ideal for clinics, hospitals, EMS, and mobile care, it delivers high-quality cardiac diagnostics with wireless connectivity and paperless workflow support.

Overview

Combining tablet-like portability with powerful ECG performance, the FT‑1 offers exceptional signal fidelity, simultaneous 12‑lead recording, and up to 4 minutes of continuous rhythm monitoring. It features bidirectional Wi‑Fi and Ethernet for seamless EMR/HIS integration and secure workflow management. Optional interpretation modules include ETM, ETM Sport, and early STEMI detection via the CCAA algorithm.

Key Features

• 8″ color touchscreen: Intuitive multi-touch with anatomical hook‑up adviser and lead‑reversal detection
• High‑fidelity ECG: 32 kHz sampling rate with wide bandwidth—optimized for adult and pediatric use
• Up to 4‑minute rhythm recording: Supports extended cardiac monitoring during stress tests or arrhythmia evaluation
• Bidirectional connectivity: Wi‑Fi and Ethernet, with PDF, DICOM, HL7, XML export and EMR integration
• Embedded thermal printer: High-resolution output using Z‑folded paper
• Advanced analysis: Optional ETM, ETM Sport (athlete-specific), and Culprit Coronary Artery Algorithm (CCAA)
• Battery powered: Up to 3–4 hours of operation on battery alone
• Ultra-portable: Weighs just ~2.4 lb including battery and paper

Product Specifications

• Leads: Simultaneous 12‑lead acquisition
• Display: 8″ LCD, 1024×768 resolution
• Sampling rate: Up to 32,000 Hz
• Memory: Stores up to 350 resting ECGs and 100 rhythm recordings
• Printer: Built‑in thermal, Z‑fold paper (114 × 150 mm)
• Dimensions: ~230 × 160 × 30 mm (9.1″ × 6.3″ × 1.2″)
• Weight: Approximately 2.4 lb (1.1 kg) including paper
• Battery life: 3–4 hours (Wi‑Fi off)
• Interfaces: USB, Ethernet, Wi‑Fi (802.11a/b/g/n)
• Filters: Myogram LP25/40/150 Hz; AC 50/60 Hz
• Operating conditions: 10–40 °C, 15–95 % non‑condensing humidity
• Power supply: 100–240 VAC; battery operation
