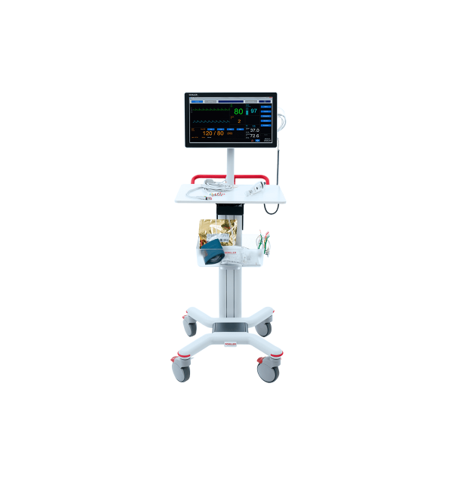

Schiller Diagnostic Station Ds20

The Schiller CARDIOVIT DS‑20 is an all-in-one diagnostic station that combines vital signs monitoring, ECG, and optional spirometry into a single, intuitive device. Designed for hospital triage, outpatient clinics, and urgent care settings, the DS‑20 streamlines patient assessment with automatic sensor recognition and rapid measurement capabilities.

Overview

Equipped with an 18.5″ high-resolution touchscreen, the DS‑20 automatically detects connected modules for seamless transition between measurements. It supports heart rate, blood pressure, SpO₂, temperature, respiration, and ECG analysis, and can be expanded to include spirometry and other advanced diagnostic tools. The system is built for modern clinical workflows with full network connectivity, integration into EMR/HIS systems, and data export via Wi-Fi or Ethernet.

Key Features

• All-in-one diagnostics: Combines ECG, blood pressure, SpO₂, temperature, respiration rate, and optional spirometry in one device.
• Auto-detect modules: Instantly recognizes connected sensors and configures the interface accordingly.
• Integrated 3-lead ECG: Includes resting ECG with optional 12-lead upgrade and interpretation software.
• Large touchscreen display: 18.5″ color interface with easy-to-use, icon-based navigation.
• Connectivity ready: Supports Wi-Fi and Ethernet for seamless integration with EMR, PACS, and HIS systems.
• Optional modules: Expandable with spirometry, non-invasive temperature probes, pulse wave analysis, and more.
• Data storage: Capable of storing up to 72 hours of vital signs data with 864 trend records.

Product Specifications

• Display: 18.5″ color touchscreen, 1366 × 768 resolution
• Dimensions: 460 × 275 × 77 mm (18.1″ × 10.8″ × 3″)
• Weight: Approximately 10 lb (4.5 kg)
• ECG: 3-lead standard; 12-lead optional; sampling rate up to 32,000 Hz
• NIBP: Oscillometric, with automatic and manual modes
• SpO₂: Masimo SET technology, optional CO and MetHb detection
• Temperature: Optional non-invasive sensor
• Respiration: Impedance-based measurement via ECG leads
• Battery life: Up to 2 hours on internal battery; rechargeable in 2.5 hours
• Interfaces: Wi-Fi, Ethernet, USB ports, barcode scanner support
• Certifications: Medical-grade device compliant with IEC/EN 60601 and FDA regulations

Ideal For

• Hospital emergency departments and triage areas
• Primary care and outpatient clinics
• Cardiology practices requiring integrated ECG
• Urgent care centers and walk-in clinics
• Healthcare providers needing fast, consolidated diagnostics
