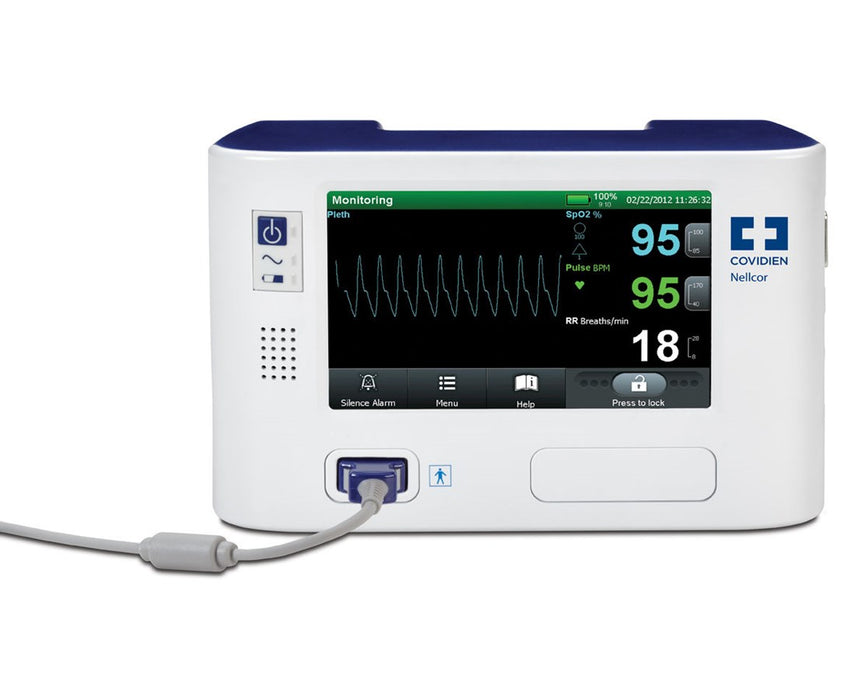

Nellcor PM1000N Bedside SpO2 Pulse Oximeter

The Nellcor™ PM1000N Bedside Respiratory Patient Monitoring System provides continuous, non-invasive monitoring of arterial oxygen saturation (SpO₂), pulse rate, and respiration rate. Designed for use in hospitals, surgical centers, and outpatient clinics, this advanced system enhances patient safety and clinical efficiency.

Overview

Utilizing the latest Nellcor™ digital signal processing and cardiac-based technology, the PM1000N delivers accurate, reliable readings even under challenging conditions such as patient movement or low perfusion. Its intuitive color touchscreen interface offers easy access to critical patient data, while features like SatSeconds™ alarm management and Saturation Pattern Detection (SPD) alerts enable early detection of respiratory compromise, allowing for timely intervention.

Key Features

• Continuous monitoring of SpO₂, pulse rate, and respiration rate via a single finger sensor
• Motion-tolerant pulse oximetry compliant with ISO 80601-2-61 standards
• SatSeconds™ alarm management differentiates between significant and minor desaturation events
• Saturation Pattern Detection (SPD) alerts for real-time identification of repetitive airflow reductions
• Modular software with expandable parameters and easy on-site upgrades
• Stores up to 48 hours of trend data for comprehensive patient assessment
• Multiple connectivity options, including wired and wireless LAN, and compatibility with central monitoring systems
• Lightweight, portable design suitable for various clinical environments

Product Specifications

• SpO₂ Measurement Range: 1% to 100%
• Pulse Rate Range: 20 to 250 beats per minute (bpm)
• Accuracy:
  • SpO₂ (70%–100%): ±2 digits
  • SpO₂ (60%–80%, low saturation): ±3 digits
  • Pulse Rate: ±3 digits (±5 digits under motion conditions)
• Display: Color touchscreen with real-time waveform and trend data
• Data Storage: Up to 48 hours of trend data at one-second intervals
• Power Requirements: 80–263 VAC, 47/63 Hz, 30 VA
• Battery: Lithium-ion, approximately 6 hours of operation under nominal load
• Dimensions: 10" H x 6.5" W x 5" D (254 mm x 165 mm x 127 mm)
• Weight: 7.5 lbs (3.4 kg)
• Compliance: EN ISO 80601-2-61, IEC 60601-1, RoHS directive 2011/65/EU

Ideal For

• Hospitals and surgical centers
• Outpatient clinics
• Intensive care units (ICUs)
• Emergency departments
• Post-anesthesia care units (PACUs)
• Respiratory therapy departments
