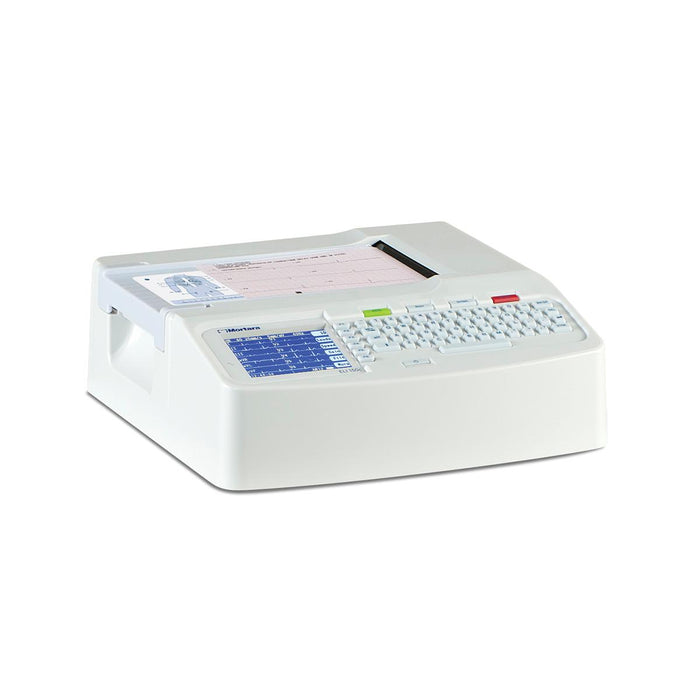

Burdick ELI 150c Resting Electrocardiograph

The Mortara Burdick ELI 150c Resting Electrocardiograph is a compact, portable 12‑lead ECG system featuring the Mortara VERITAS interpretation algorithm and optional wireless acquisition. Designed for outpatient clinics, mobile screening, and general practice, it combines diagnostic accuracy with streamlined workflow and flexible connectivity.

Overview

With a backlit color LCD and “Best‑10” feature that selects the cleanest 10‑second ECG segment, the ELI 150c minimizes repeat tests and improves efficiency. It supports both wired (AM12) and wireless (WAM) acquisition modules, includes internal storage, printing, and bidirectional connectivity via LAN/WLAN/DICOM/USB. Powered by AC or battery, it meets clinical demands across a range of care settings.

Key Features

• 12‑lead ECG acquisition: Simultaneous capture of all standard leads for full diagnostics.
• VERITAS algorithm: Gender- and age-specific automatic interpretation.
• Best‑10 technology: Automatically selects the highest-quality 10 sec interval to reduce repeat exams.
• Flexible acquisition modules: Choose between wired (AM12) or wireless (WAM) for clinical convenience.
• Preview display: Backlit 320×240 LCD shows lead layouts in 3, 4+4, or 6+6 formats.
• Internal thermal printer: Compact dot‑array printer using double Z‑fold paper—quick and efficient.
• Connectivity options: LAN, WLAN (optional), USB, DICOM, and PDF output for EMR integration.
• Rechargeable battery: Portable for mobile units or bedside use.

Product Specifications

• Instrument type: Resting 12‑lead electrocardiograph
• Lead acquisition: Simultaneous I, II, III, aVR, aVL, aVF, V1–V6
• Display: 320×240 backlit color LCD (supports 3, 4+4, or 6+6 lead views)
• Sampling rate: 40,000 Hz for pacemaker spikes, 1,000 Hz for ECG recording
• Printer: Thermal dot‑array with speeds of 5, 10, 25, or 50 mm/s
• Gain settings: 5, 10, 20 mm/mV
• Paper: Double Z‑fold thermal paper, 108 × 140 mm
• Memory: Stores 40 records (expandable to 200)
• Power: AC (100–240 V, 50/60 Hz) or internal rechargeable battery
• Dimensions: 11.25″ × 11.5″ × 3.75″ (29.2 × 30.5 × 10.2 cm)
• Weight: ~7.2 lb (3.3 kg) including battery
• Certifications: IEC 60601‑2‑25, ANSI/AAMI, CE marking; Class I CF defibrillation‑proof parts

Ideal For

• Cardiology offices and general practice clinics
• Outpatient and mobile screening programs
• Facilities needing reliable ECG interpretation
• Settings requiring wireless ECG acquisition flexibility
• Clinicians seeking compact, durable, portable ECG systems
