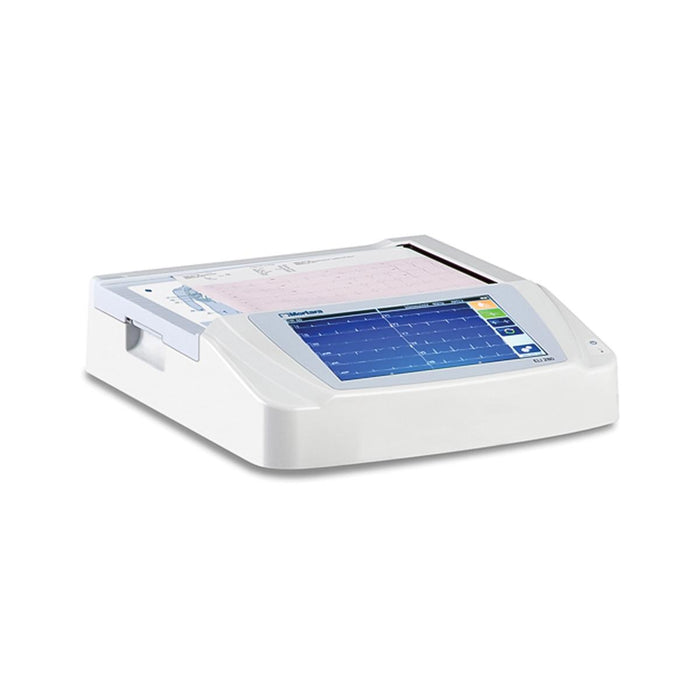

Burdick ELI 280 Resting Electrocardiograph

The Mortara Burdick ELI 280 Resting Electrocardiograph is a high-performance, portable 12-lead ECG system featuring a 10.1″ color touchscreen, VERITAS® interpretation algorithm, and “Best‑10” signal capture. Designed for fast-paced clinical environments, it ensures efficient, accurate diagnostics with flexible wired or wireless operation.

Overview

The ELI 280 displays all 12 leads simultaneously on its widescreen touchscreen, allowing easy waveform verification. Its Best‑10 function reduces repeat exams by selecting the top-quality 10 seconds from a 5-minute scan. With both wired (AM12) and wireless (WAM) acquisition options, it supports bedside flexibility. Powered by the clinical-grade VERITAS algorithm and pacemaker spike detection, the system is built for reliability and ease of use in high-volume settings. Advanced security, lead-reversal detection, and pediatric support further enhance its versatility.

Key Features

• 10.1″ color touchscreen: Displays all 12 leads at once for streamlined review and workflow efficiency.
• Best‑10 capture: Automatically identifies the highest-quality 10-second ECG segment from extended acquisition.
• VERITAS® algorithm: Gender and age-specific interpretation for adult and pediatric patients.
• Flexible acquisition: Choose wired (AM12) or wireless (WAM) modules to suit your care environment.
• High-resolution sampling: 40,000 sps/channel for pacemaker detection; 1,000 sps for standard ECG.
• Lead reversal alerts: Detects and warns of up to 80% of lead placement errors.
• Comprehensive connectivity: Supports LAN, WLAN (optional), DICOM, USB, and wristband scanning for patient data capture.
• Secure and scalable: Encryption, user authentication, and audit trails for ePHI protection.

Product Specifications

• Display: 10.1″ backlit color touchscreen showing all 12 leads
• Acquisition: Simultaneous 12-lead ECG; 40,000 sps for pacemaker, 1,000 sps for ECG
• Memory: Stores up to 200 ECGs
• Printer: Internal thermal dot-array supporting multiple rhythm and lead formats
• Power: Universal AC (100–240 VAC, 50/60 Hz) with rechargeable battery
• Dimensions: 39.4 × 43.2 × 10.2 cm (15.5 × 17 × 4″)
• Weight: ~6.3 kg (13.9 lb) including battery
• Safety: Class I, CF defibrillation-proof; IEC 60601‑2‑25 certified
• Security: Supports LDAP/AD integration, encryption at rest/in transit

Ideal For

• Hospital cardiology and med-surg units
• Outpatient clinics, primary care, and cardiology offices
• Mobile health screenings and bedside ECG acquisition
• Facilities needing fast, reliable ECG capture with automated interpretation
• Environments with data security and wireless flexibility requirements
