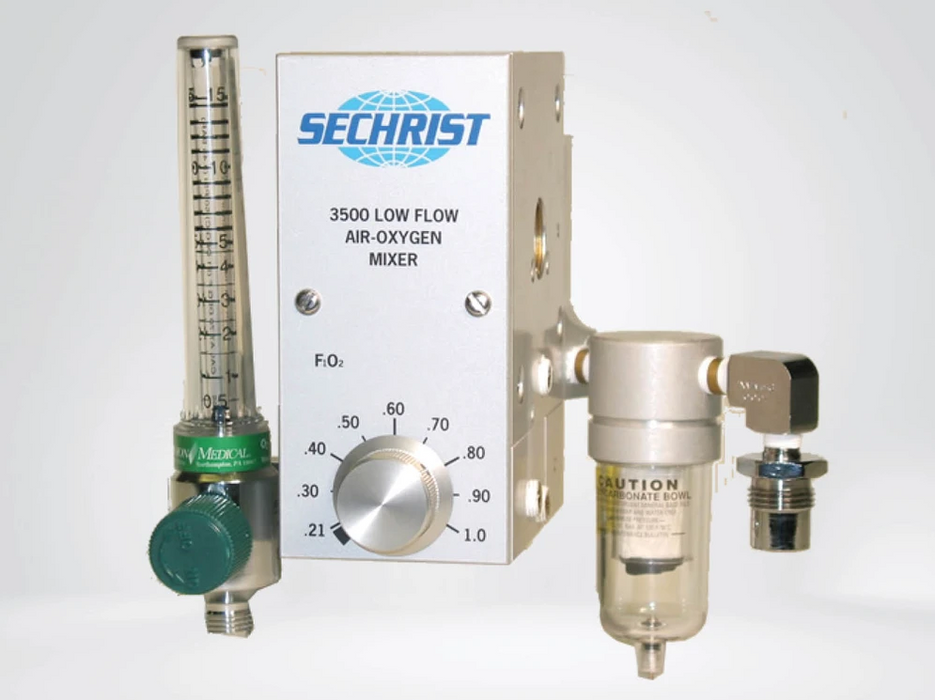

Low Flow Mixer Air Oxygen - Model 20457/20459 - Sechrist

Wall or Pole Mount

Standard Parts:
0-15 LPM flowmeter
Water Trap Assembly

Optional Parts:
14ft air hose/14ft oxygen hose, both with DISS fittings**
**Not CE marked.

Provides for precise mixing of air and oxygen for many clinical applications. Models 20457 and 20459 are low flow mixers designed for general applications. 20457 utilizes a wall mount configuration and 20459 provides for pole mounting.

Accuracy*: +/- 3% • Maximum Flow at 60% FIO2 and 50 psig • Maximum Flow: 40 LPM

Bleed Flow: 2.5 - 4.5 LPM @ 8 LPM Flow Rate • FIO2 Range: 0.21 +0.01 to 1.0

Gas Supply Range: 50 psig +/- 20 psig
