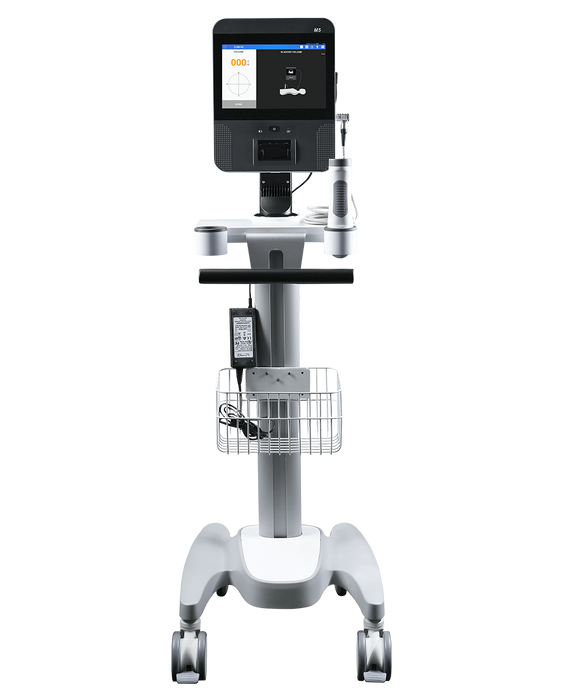

Mdpro 5M Bladder Scanner

The MDPro M5 Bladder Scanner is a cutting-edge 3D ultrasound device designed for rapid, non-invasive bladder volume and wall thickness measurement. Featuring a 10.1″ capacitive touchscreen, built-in printer, and mobile cart, this system is ideal for hospitals, rehabilitation centers, long-term care facilities, and urology clinics.

This scanner streamlines workflow with its intuitive interface, dual-display guidance for accurate probe placement, and no annual calibration requirement. It supports automated patient-type selection and has ±7% volume accuracy. Bladder wall thickness readings further enhance diagnostic capabilities—making the M5 a reliable tool for diverse clinical care settings.

Key Features

• No annual calibration required for dependable performance
• Volume measurement accuracy of ±7% (100–999 ml) and ±7 ml for volumes under 100 ml
• 10.1″ capacitive touchscreen console for intuitive operation
• Automatic patient type selection and pubic bone interference indicator
• Built-in thermal printer and USB/Wi‑Fi/QR-code data export
• Dual-screen probe-guidance display for precise positioning
• 3200 mAh battery enables up to 2 hours of continuous scanning
• Mobile medical cart included for easy transport

Product Specifications

• Probe: 3D mechanical sector, 2.5 MHz nominal frequency ±15%
• Volume Range: 0–999 ml; Resolution: 1 ml
• Wall Thickness Range: 0–15 mm; accuracy ±(10% + 1 mm)
• Scanning Speed: Under 5 seconds per scan
• Scan Depth Options: 12, 16, 19, and 23 cm
• Battery: 3200 mAh; >28 hr standby, 2 hr continuous scanning
• Display: 10.1″ capacitive TFT touchscreen
• Data Storage: Over 10,000 patient records; export via USB, Wi‑Fi, and QR code
• Printer: Onboard thermal printer for physical record generation
• Languages: Multi-language interface
• Cart: Medical-grade cart with locking casters included

Ideal For

• Hospital departments: urology, ICU, post-op, and acute care
• Long-term care and skilled nursing facilities
• Rehabilitation and outpatient therapy centers
• Urology and imaging clinics
• Mobile care teams and home health monitoring
