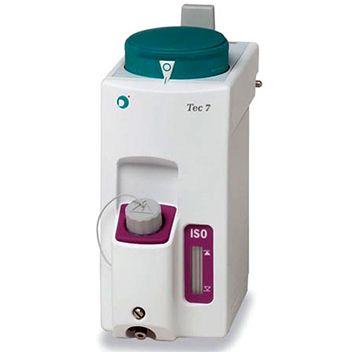

GE Datex Ohmeda Tec 7 ISO Isoflurane Vaporizer

The GE Datex-Ohmeda Tec 7 Anesthesia Vaporizer delivers precise and reliable administration of anesthetic agents across various healthcare settings. Designed for use in hospitals, surgical centers, and outpatient clinics, this vaporizer ensures consistent performance and patient safety.

Overview

Featuring agent-specific models for Isoflurane, Sevoflurane, and Halothane, the Tec 7 vaporizer provides consistent output throughout the clinical flow range of 200 mL/min to 15 L/min. Its ergonomic design includes a large diameter control dial with fine graduations, allowing for precise adjustments. The Easy-Fil and Funnel Fill options simplify agent filling and help minimize leaks, enhancing operational efficiency.

Key Features

• Agent-specific models for Isoflurane, Sevoflurane, and Halothane
• Consistent output across a flow range of 200 mL/min to 15 L/min
• Large diameter control dial with fine graduations: 0.2% between 0–1%, 0.5% from 1–8%
• Easy-Fil and Funnel Fill options for simplified agent filling and minimized leaks
• Ergonomic agent dial release allows for left or right-hand operation
• Factory service-free design reduces maintenance requirements
• Non-spill system limits movement of liquid agent if tilted or inverted
• Prismatic sight glass provides clear indication of liquid agent level

Product Specifications

• Dimensions: 9.9" H x 4.5" W x 8.3" D (25 cm x 11.4 cm x 21 cm)
• Weight (Dry): 15.4 lbs (7 kg)
• Agent Capacity: 225 mL (charged), 300 mL (to charge dry vaporizer), 75 mL (retained by wick system)
• Calibration:
  • Isoflurane and Halothane: 0.2% increments up to 1%, 0.5% from 1% to 5%
  • Sevoflurane: 0.2% increments up to 1%, 1% increments from 1% to 8%
• Accuracy at 5 L/min O₂, 21°C ± 2°C:
  • 5% Vaporizer: ±0.25% of delivered agent or ±15% of dial setting (whichever is greater)
  • 8% Vaporizer: ±0.4% of delivered agent or ±15% of dial setting (whichever is greater)
• Operating Temperature Range: 18°C to 35°C (64°F to 95°F)
• Humidity Range: 30% to 75% relative humidity (non-condensing)
• Mounting: Compatible with GE Healthcare anesthesia delivery systems equipped with the Selectatec manifold

Ideal For

• Hospitals and surgical centers
• Outpatient clinics
• Ambulatory surgery centers
• Facilities requiring precise and reliable anesthetic agent delivery
