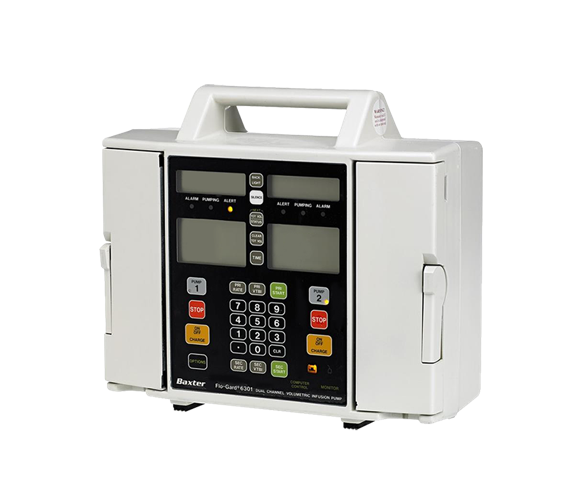

Baxter Flo-Gard 6301 Dual Channel Infusion Pump

The Baxter Flo-Gard 6301 Dual Channel Infusion Pump is a versatile and reliable solution for administering intravenous fluids across various healthcare settings, including hospitals, outpatient clinics, and surgical centers. Designed to enhance patient safety and streamline clinical workflows, this infusion pump offers advanced features that support accurate and efficient medication delivery.

Overview

Engineered to minimize IV medication errors, the Flo-Gard 6301 Infusion Pump integrates a comprehensive, customizable drug library and an intuitive user interface. Its large display provides real-time infusion data, while customizable settings allow healthcare professionals to tailor the pump's operation to specific clinical protocols. The device's robust design ensures consistent performance across a range of infusion therapies.

Key Features

• Dual-channel design allows simultaneous infusion of two solutions, effectively functioning as two pumps in one unit
• Independent programming for each channel, supporting primary and secondary infusion modes
• Automatic piggybacking seamlessly transitions from secondary to primary infusion upon completion
• Volume-Time programming automatically calculates flow rate based on input parameters
• Ultrasonic air-in-line detectors and occlusion sensors enhance patient safety by detecting flow restrictions
• Safety clamp mechanism prevents free flow when the pump door is opened
• Front panel lock-out feature safeguards against unauthorized tampering
• Compatible with standard IV administration sets, reducing operational costs

Product Specifications

• Dimensions: 13" W x 5.1" D x 11.4" H (33 cm x 13 cm x 29 cm)
• Weight: Approximately 11.6 lbs (5.3 kg)
• Flow Rate Range:
  • 1.0–99.9 mL/hr in 0.1 mL increments
  • 1–1,999 mL/hr in 1 mL increments
• Volume to be Infused (VTBI): 1–9,999 mL
• Keep Vein Open (KVO) Rate: 5 mL/hr or programmed rate, whichever is lower
• Battery: 12V, 2.0 Ah sealed lead-acid; approximately 6 hours of operation at 1,400 mL/hr
• Battery Recharge Time: Approximately 8 hours for more than 80% recharge
• Power Requirements: 110/120V, 60 Hz
• Compliance: Meets or exceeds UL-544 standards

Ideal For

• Hospitals and acute care facilities
• Outpatient clinics and surgical centers
• Emergency departments and trauma centers
• Oncology and infusion therapy centers
• Long-term care and rehabilitation facilities
