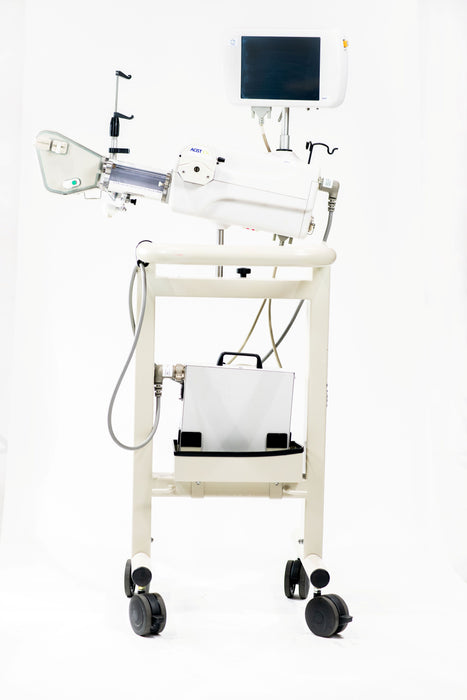

The ACIST CVi® Contrast Delivery System is a premium angiographic injector engineered for interventional cardiology, radiology, and vascular surgery suites. Designed for catheterization labs and radiological procedural rooms, its real-time control, integrated safety technologies, and streamlined workflow promote precise, low-dose contrast delivery and enhanced patient and clinician safety.

Overview:
The ACIST CVi features a software-controlled, motor-driven pump paired with the handheld AngioTouch® controller, enabling instantaneous variable rate or fixed-rate contrast administration. It automates saline flushing, air column detection, pressure monitoring, and X-ray synchronization, reducing contrast volume, radiation exposure, and overall procedure time. FDA-cleared (510(k) K203004), it offers supervised use in licensed healthcare facilities for angiographic procedures. :contentReference[oaicite:0]{index=0}

Key Features

• AngioTouch® handheld controller for real-time, fingertip-controlled variable and fixed-rate injection
• Built-in air-column detection and safety sensors to help prevent air embolism
• Synchronized X-ray triggering enables operators to step back, reducing radiation exposure by ~50%
• Reduces contrast usage by 25–30% vs. manual injection protocols
• Variable flow rates from 0.8–40 mL/s and pressures from 200–1200 psi, with programmable rise time
• Auto or manual saline refill at ~3 mL/s, supporting up to 100 mL syringe plus bulk contrast bottle
• Touchscreen interface and seamless integration with imaging systems for workflow efficiency

Product Specifications

• Flow Rate: 0.8–40 mL/s, in 0.10 mL/s increments; fixed rate at 1.6 mL/s
• Volume Range: 0.8–99.9 mL (contrast); saline KVO up to 200 mL at 0.1–10 mL/min with 20‑min timeout
• Pressure Limits: Adjustable 200–1200 psi; system auto‑limits when pressure threshold exceeded
• Rise Time: Programmable from 0.0–1.0 s in 0.1 s increments
• Saline Refill: Manual or automatic refill at ~3 mL/s; holds one 100 mL syringe plus up to 500 mL bulk
• Sensors: Air-column, contrast presence, manifold valve position, syringe valve position, pressure monitoring
• Mounting Options: Movable pedestal cart or table/bed-rail mount with adjustable arm
• FDA Compliance: Class II medical device, 510(k) K203004; uses disposable A2000/A1000 kits, manifold and AngioTouch® hand controller per patient

Ideal For

• Interventional cardiology and PCI procedures
• Diagnostic angiography in catheterization labs
• Vascular radiology and hybrid OR environments
• Sites requiring contrast dose reduction and CI‑AKI mitigation
• Clinics focused on radiation safety and operator ergonomics

Warranty: 1 Year
Lead Time: 14 Days
