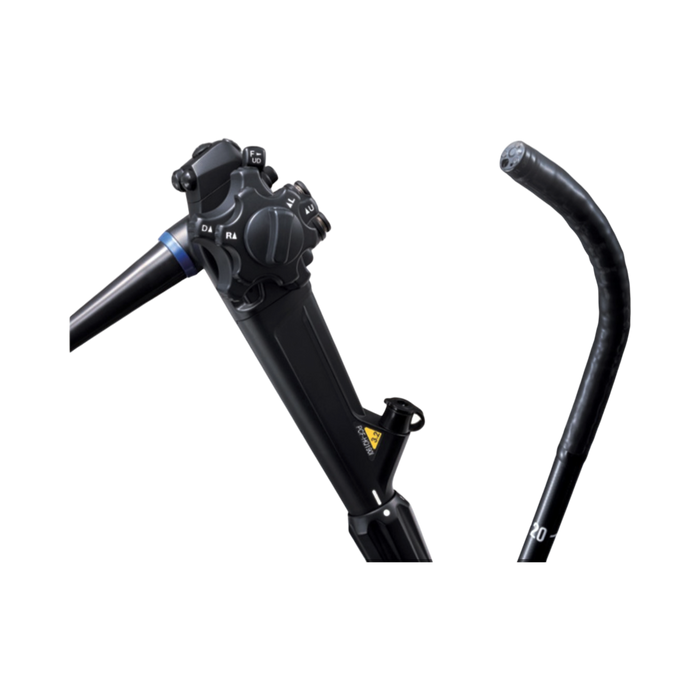

The Olympus PCF-HQ190L EVIS EXERA III Video Colonoscope is a high-definition, slim-design endoscope engineered for comprehensive examination of the colon. Its advanced imaging capabilities and ergonomic design make it ideal for use in hospitals, surgical centers, and gastroenterology clinics, providing accurate and reliable diagnostic information.

Overview

Equipped with HDTV and Narrow Band Imaging (NBI) technology, the PCF-HQ190L delivers sharp, detailed images that enhance diagnostic accuracy. The incorporation of Responsive Insertion Technology (RIT) combines three proprietary insertion tube technologies—High Force Transmission (HFT), Passive Bending (PB), and variable stiffness—to facilitate complete colonoscopies by improving scope handling, insertability, and ergonomics. Its slim design and wide field of view facilitate comprehensive examinations while ensuring patient comfort.

Key Features

• High-Definition Imaging: HDTV-compatible CCD provides clear, detailed visuals for accurate diagnosis.
• Narrow Band Imaging (NBI): Enhances contrast of mucosal surfaces and vascular structures, providing twice the viewable distance compared to previous models.
• Responsive Insertion Technology (RIT): Combines HFT, PB, and variable stiffness for improved scope handling and patient comfort.
• Wide Field of View: 170° viewing angle enables comprehensive examination of target areas.
• Ergonomic Design: Slim 12.0 mm insertion tube and 11.8 mm distal end for improved maneuverability and patient comfort.
• Generous Instrument Channel: 3.2 mm diameter accommodates a wide range of endoscopic devices.
• Four-Way Angulation: Up: 180°, Down: 180°, Right: 160°, Left: 160° for optimal navigation.
• Compatibility: Integrates seamlessly with Olympus CV-190 video processor and CLV-190 light source.

Product Specifications

• Optical System:
  • Field of View: 170°
  • Direction of View: Forward viewing (0°)
  • Depth of Field: Normal: 5–100 mm; Near: 2–6 mm
• Physical Dimensions:
  • Distal End Outer Diameter: 11.8 mm
  • Insertion Tube Outer Diameter: 12.0 mm
  • Working Length: L: 1680 mm; I: 1330 mm
  • Total Length: L: 2005 mm; I: 1655 mm
• Instrument Channel:
  • Inner Diameter: 3.2 mm
  • Minimum Visible Distance: 3.0 mm from the distal end
• Bending Section:
  • Up: 180°
  • Down: 180°
  • Right: 160°
  • Left: 160°
• Imaging Technology:
  • HDTV-compatible CCD
  • Narrow Band Imaging (NBI) capability
  • Dual Focus optical system
• Compatibility:
  • Video Processor: Olympus CV-190
  • Light Source: Olympus CLV-190

Ideal For

• Hospitals and medical centers
• Surgical centers
• Gastroenterology clinics
• Outpatient diagnostic procedures
• Colorectal cancer screenings
