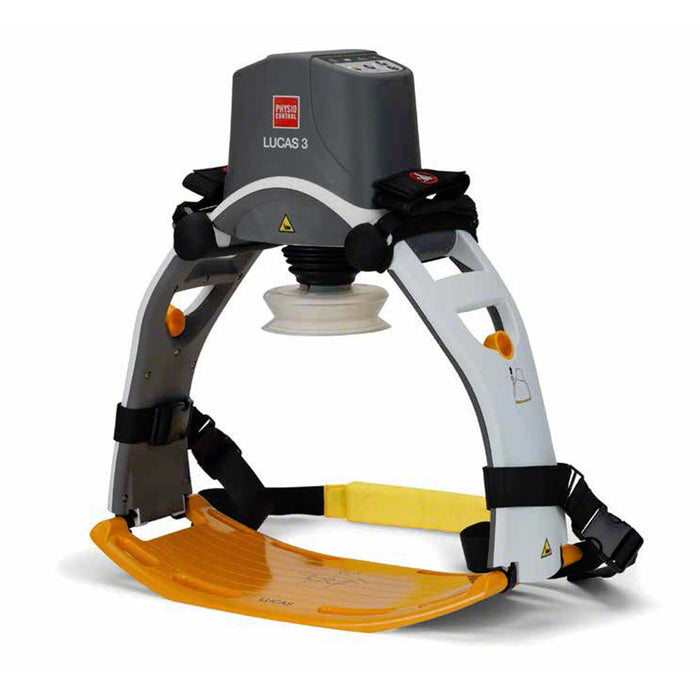

The LUCAS 3 Chest Compression System delivers high-quality, consistent chest compressions, ensuring uninterrupted CPR during cardiac arrest situations. Designed for use in various clinical settings, including hospitals, emergency departments, and pre-hospital environments, the LUCAS 3 enhances patient outcomes by maintaining effective circulation without the fatigue associated with manual compressions.

Overview

The LUCAS 3 is a portable, battery-powered device that automates chest compressions at a consistent rate and depth, aligning with current AHA and ERC guidelines. Its compact design allows for quick deployment and operation by trained medical personnel, freeing up responders to focus on other critical interventions during resuscitation efforts. The device's wireless connectivity enables seamless integration with data management systems for post-event review and quality improvement.

Key Features

• Delivers 102 compressions per minute with a depth of 2.1 inches (53 mm)
• Battery-powered operation with optional AC or car power adapters
• Lightweight and compact design for easy transport and deployment
• Quick application in various patient positions (e.g., ground, stretcher, bed)
• Consistent performance reduces variability and fatigue associated with manual CPR
• Integrated stabilization strap ensures secure placement during operation
• Easy-to-clean surfaces and replaceable suction cup for hygiene maintenance
• Wireless connectivity for data transmission and device configuration

Product Specifications

• Dimensions (assembled): 22.0" x 20.5" x 9.4" (56 cm x 52 cm x 24 cm)
• Weight: 17.7 lbs (8.0 kg) including battery
• Battery Runtime: Approximately 45 minutes of continuous operation
• Battery Recharge Time: Less than 4 hours
• Compression Rate: Configurable to 102, 111, or 120 compressions per minute
• Compression Depth: Configurable between 1.8 to 2.1 inches (45 to 53 mm)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Compliance: Meets IEC60601 series standards

Ideal For

• Hospitals and emergency departments
• Ambulance and EMS services
• Cardiac catheterization labs
• Intensive care units (ICU)
• Air medical transport
• Military and disaster response teams
