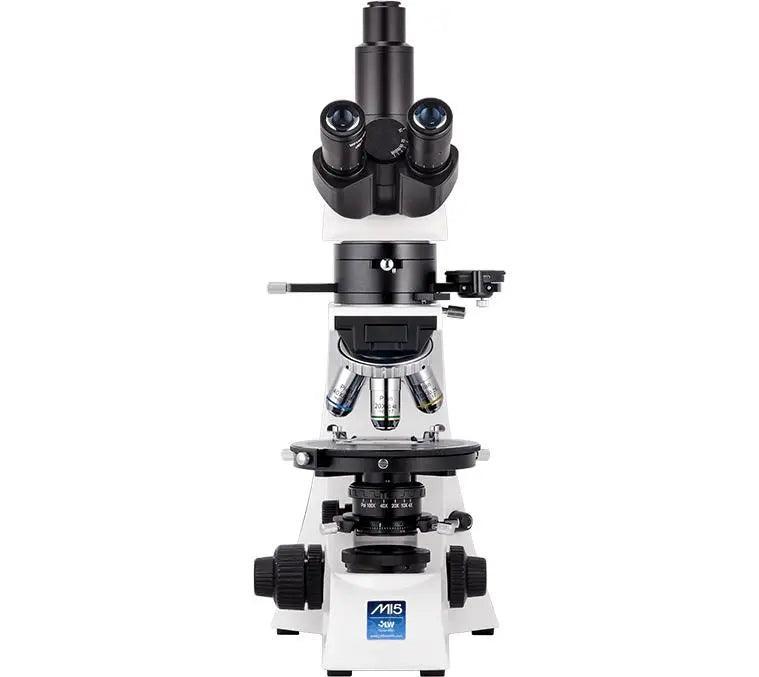

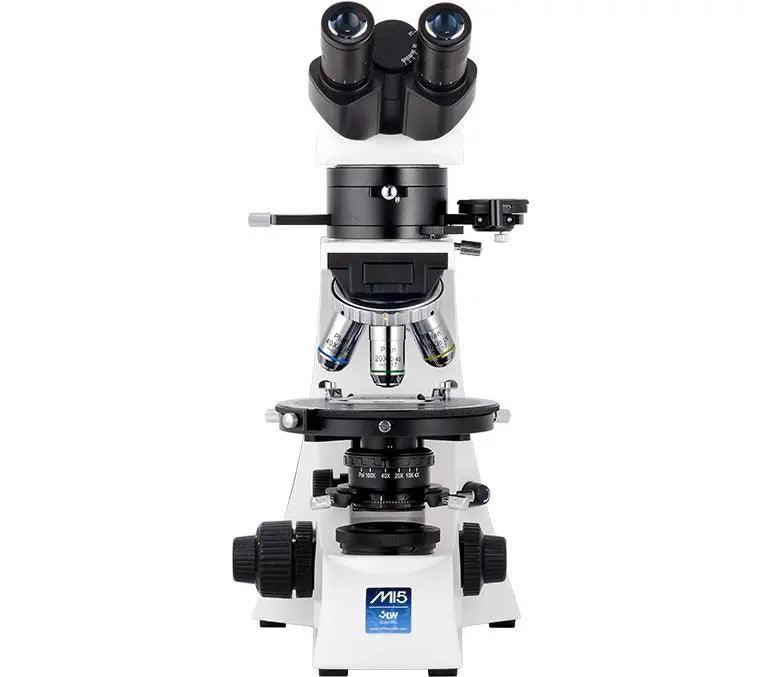

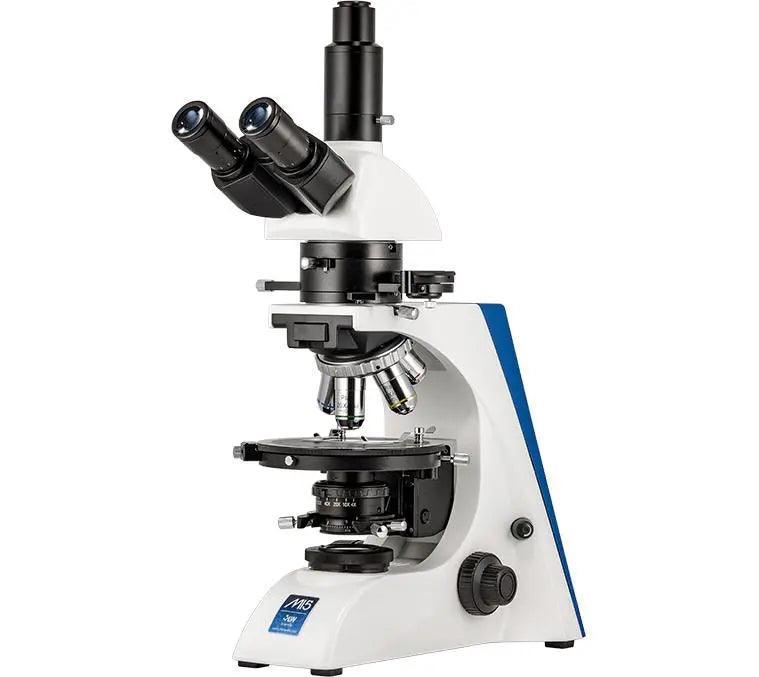

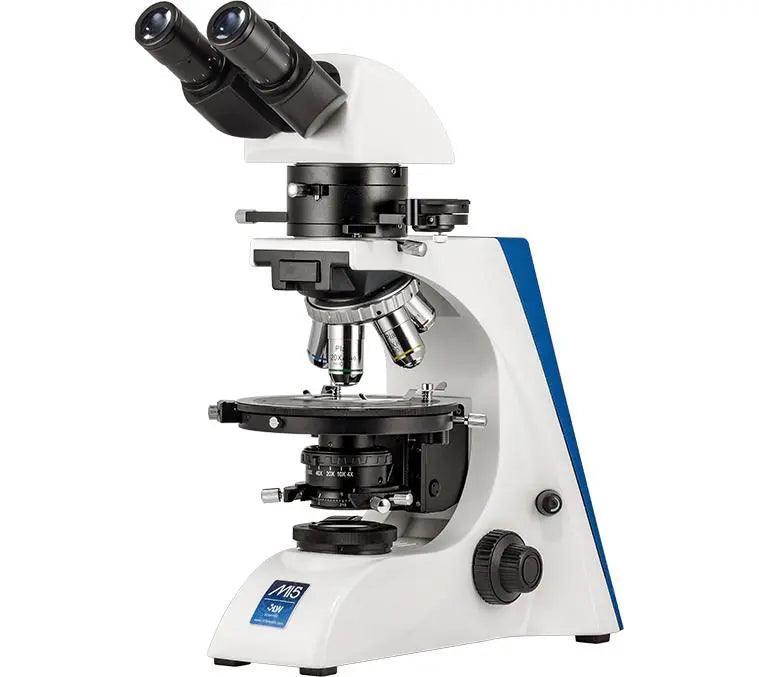

LW Scientific Mi5 Polarizing Microscope for Rheumatology

The LW Scientific Mi5 Polarizing Microscope is a high-performance instrument designed for advanced materials analysis, geology, petrography, and industrial quality control. With its precision optics, built-in polarizing components, and durable construction, this microscope delivers clear, detailed images of birefringent materials and crystalline structures, making it a trusted choice for both research and education.

Overview

The Mi5 Polarizing Microscope features a professional infinity optical system and integrated polarizer/analyzer for accurate analysis of polarized light behavior in minerals, polymers, and other anisotropic materials. It includes a rotating stage with stage clips and a Bertrand lens for conoscopic and orthoscopic observation. Whether you're conducting crystal orientation studies or teaching optical mineralogy, the Mi5 is engineered to meet the rigorous demands of polarizing microscopy.

Key Features

• Infinity Plan Achromatic objectives optimized for polarizing applications
• Built-in polarizer, analyzer, and Bertrand lens for complete polarization control

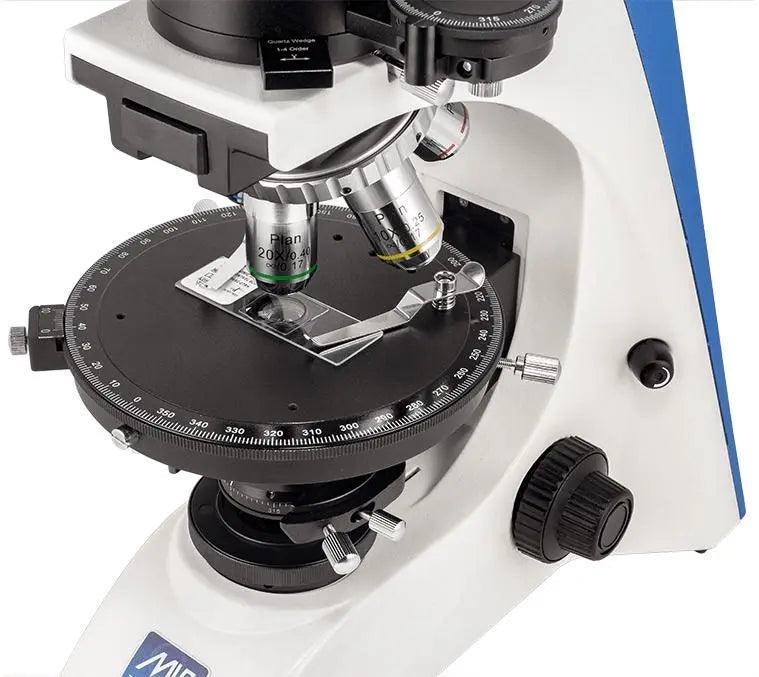

• 360° rotatable stage with stage clips and Vernier scale
• Trinocular head allows for visual observation and camera integration
• LED illumination provides bright, cool, and adjustable light
• Centerable nosepiece and coaxial coarse/fine focusing system
• Designed for long-term durability in lab and field environments
• Made in the USA with expert technical support and service

Product Specifications

• Head: Trinocular, 30° inclined, rotatable 360°
• Eyepieces: Widefield 10x with pointer and diopter adjustment
• Objectives: Infinity Plan Achromatic 4x, 10x, 40x, and 60x
• Stage: 360° rotatable with locking mechanism and Vernier scale
• Condenser: Abbe 1.25 NA with iris diaphragm
• Polarization: Built-in polarizer, analyzer, Bertrand lens
• Illumination: Adjustable LED light source
• Focus: Coaxial coarse and fine focus knobs
• Power: 110V or 220V (model dependent)
• Warranty: 5-year limited warranty (1-year on electrical components)

Ideal For

• Geology and petrography laboratories
• Materials science and crystallography research
• Industrial and manufacturing quality control
• University and educational labs
• Polarized light microscopy training programs
