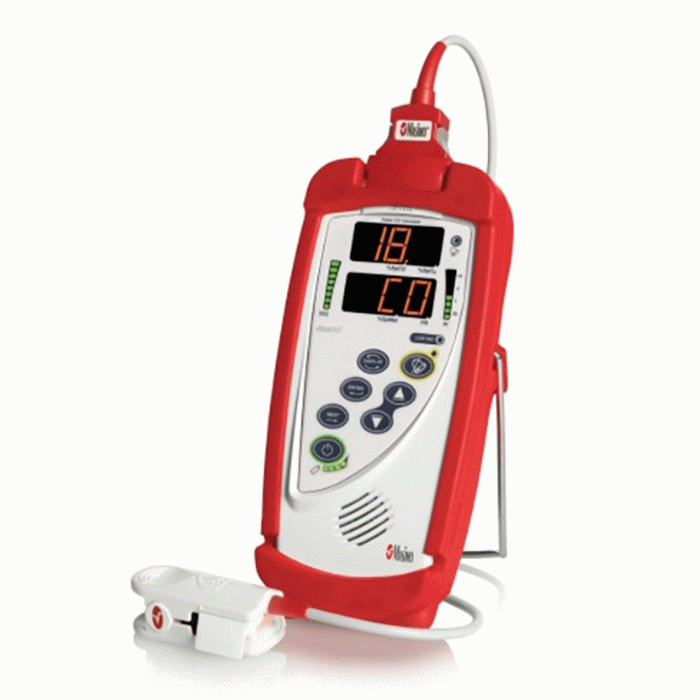

Masimo Rad-57 Pulse Co-Oximeter

The Masimo Rad-57 Pulse CO-Oximeter is a compact, handheld monitoring device designed for EMS, hospitals, and point-of-care environments. Engineered with Masimo SET and optional rainbow technology, it provides fast, non-invasive measurement of oxygen saturation, pulse rate, perfusion index, and optional advanced parameters like SpCO, SpMet, SpHb, PVi, and SpOC.

Overview

Ideal for both stationary and mobile settings, the Rad-57 offers real-time monitoring, advanced signal processing, and trending capabilities in a durable, portable form factor. With its rugged design, 72-hour memory, and operation on standard AA batteries, it is well-suited for critical care transport, field response, and high-demand hospital environments. Visual and audible alarms, along with signal quality indicators, help clinicians respond quickly to changes in patient status.

Key Features

• Masimo SET technology ensures accurate readings during motion and low perfusion
• Upgradeable rainbow platform supports SpCO, SpMet, SpHb, PVi, and SpOC measurements
• Low Signal IQ indicator alerts users to poor signal quality
• FastSat algorithm tracks rapid changes in oxygen saturation
• 72-hour memory capacity for trend review and patient monitoring
• Operates on four AA batteries with up to 8 hours of continuous use
• Compact and lightweight (~13 oz) for field and transport applications
• Rugged, ergonomic housing designed for clinical and emergency use

Product Specifications

• Dimensions: 6.2″ L × 3.0″ W × 1.4″ D
• Weight: Approximately 13 oz (with batteries)
• Display: Multicolor LED with numeric and signal quality indicators
• Power Source: 4 AA alkaline batteries
• Runtime: Up to 8 hours continuous operation
• Measured Parameters: SpO₂, Pulse Rate, Perfusion Index (PI)
• Optional Parameters: SpCO (Carbon Monoxide), SpMet (Methemoglobin), SpHb (Total Hemoglobin), PVi (Pleth Variability Index), SpOC
• Pulse Rate Range: 25–240 bpm
• SpO₂ Range: 0–100%
• Certifications: FDA-cleared, suitable for adult, pediatric, and neonatal use

Ideal For

• Emergency medical services and first responders
• Critical care transport and ambulance teams
• Hospital departments including ICU, ER, and respiratory care
• Fire services and carbon monoxide monitoring scenarios
• Field and disaster medicine applications
• Perioperative and post-anesthesia care monitoring
