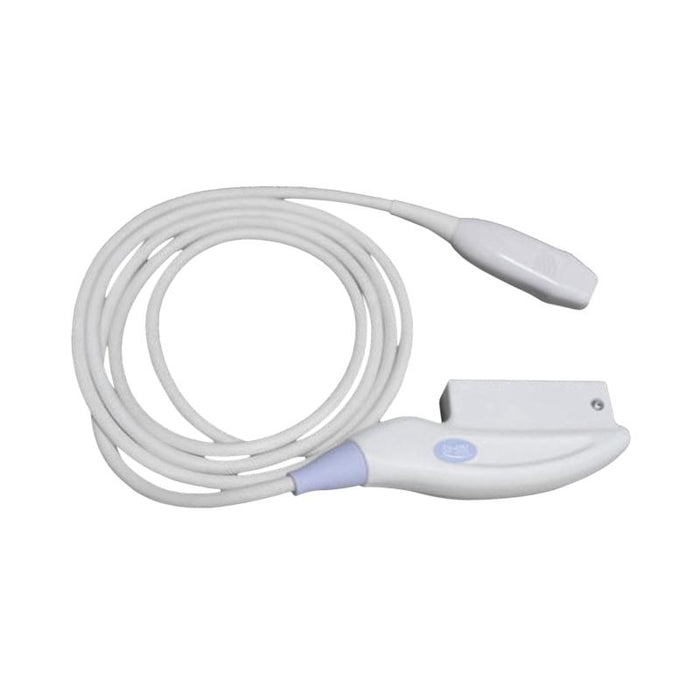

GE Healthcare 5131946 Probe Type 10S-RS

The GE HealthCare 10S-RS, part number 5131946, is a high-frequency phased-array sector ultrasound transducer designed for detailed pediatric cardiac and neonatal imaging on compatible GE ultrasound systems.

Operating across a 4.5–11.5 MHz frequency range, the 10S-RS is engineered to provide the high spatial resolution required for imaging smaller anatomical structures while maintaining the penetration necessary for pediatric cardiovascular examinations.

Key Features

• Manufacturer: GE HealthCare
• Part Number: 5131946
• Model: 10S-RS
• Probe Type: Phased Array / Sector
• Frequency Range: 4.5–11.5 MHz
• Field of View: 90°
• Maximum Imaging Depth: 12 cm
• Primary Applications: Pediatric Cardiac and Neonatal Head Imaging
• GE Catalog Number: H4000PF
• RS-Series Connector
• Designed for Compatible GE Vivid Ultrasound Systems

High-Frequency Performance for Small Acoustic Windows

The GE 10S-RS combines a compact phased-array design with a broad 90° sector field of view, allowing clinicians to obtain detailed images through the restricted acoustic windows commonly encountered in pediatric and neonatal examinations.

Its relatively high operating frequency provides excellent near- and mid-field resolution, making the probe particularly well suited for visualization of small cardiac structures and other detailed anatomy. The phased-array architecture also allows the probe to produce a wide imaging sector from a small contact area — an important advantage when imaging pediatric and neonatal patients.

On supported GE ultrasound systems, the 10S-RS supports cardiovascular imaging technologies including 2D imaging, harmonic imaging, M-Mode, Color Flow Doppler, Pulsed-Wave Doppler, and Continuous-Wave Doppler.

GE Vivid Platform Compatibility

GE documentation identifies the 10S-RS for use with cardiovascular ultrasound platforms including:

• GE Vivid i
• GE Vivid q
• GE Vivid S5
• GE Vivid S6

With its combination of high-frequency resolution, compact phased-array architecture, and dedicated pediatric imaging capabilities, the GE HealthCare 10S-RS is a strong replacement or supplemental transducer for facilities maintaining compatible GE cardiovascular ultrasound systems.

Compatibility should be verified using part number 5131946, probe model, ultrasound system model, software revision, and system configuration before purchase.
