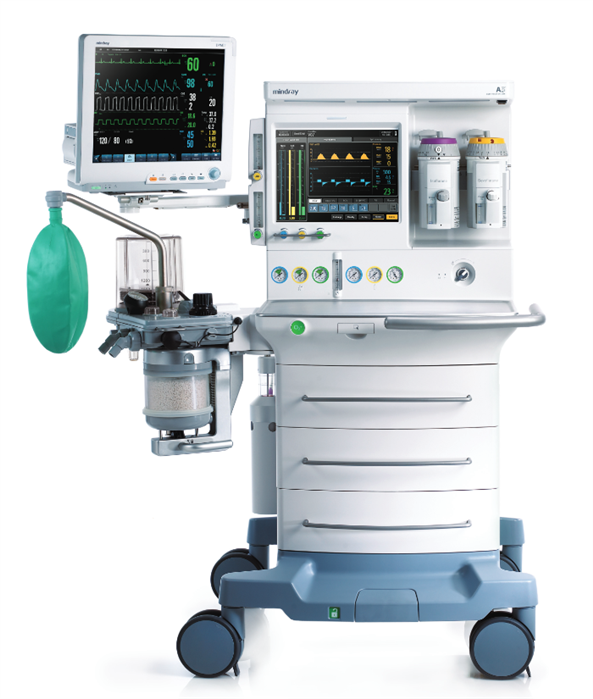

The Mindray A5 Anesthesia Machine delivers advanced ventilation capabilities, intuitive touchscreen control, and modular scalability—making it an ideal solution for modern surgical environments. Designed for high-acuity care, the A5 supports a wide range of patient types, from neonates to bariatrics, while ensuring seamless integration with electronic medical records (EMR) and anesthesia information management systems (AIMS).

Overview

Featuring a 15-inch color touchscreen interface, the A5 simplifies navigation between ventilation modes and settings, reducing the need for deep menus and dedicated buttons. Its microprocessor-controlled ventilator supports multiple modes, including Volume Control Ventilation (VCV), Pressure Control Ventilation (PCV), Pressure Support (PS), and Synchronized Intermittent Mandatory Ventilation (SIMV). The warmed breathing system minimizes internal condensation, enhancing patient safety and comfort.

Key Features

• 15-inch color touchscreen with backup touchpad for intuitive operation
• Supports VCV, PCV, PS, SIMV-VC, SIMV-PC, and manual/spontaneous modes
• Automatic compliance and fresh gas compensation maintain accurate tidal volumes
• Integrated gas analysis with auto agent identification and capnography (optional)
• Auxiliary O₂/Air flow meters deliver blended gas via nasal cannula
• High-pressure O₂ port supports jet ventilation
• Warmed breathing system reduces internal condensation
• HL7 connectivity for seamless EMR and AIMS integration
• Robust wheels with central locking brake and integrated cable sweeps
• Two-hour battery backup ensures uninterrupted operation

Product Specifications

• Dimensions: 55.1" H x 41.3" W x 31.7" D (140 cm x 105 cm x 80.5 cm)
• Weight: Approximately 331 lbs (150 kg) without vaporizers and gas cylinders
• Work Surface: 24.2" W x 15" D x 33.4" H (61.6 cm x 38 cm x 85 cm)
• Top Shelf: 24.2" W x 14.2" D (61.6 cm x 36.2 cm); weight capacity: 88 lbs (40 kg)
• Drawers: Three drawers, each 5.3" H x 17.3" W x 15.1" D (13.5 cm x 44 cm x 38.5 cm)
• Power Supply: 100–120 VAC, 50/60 Hz; power consumption: approx. 200 VA
• Battery: Two sealed lithium-ion batteries; up to 2 hours of backup power
• Compliance: Meets IEC60601 series standards

Ideal For

• Hospitals and surgical centers
• Ambulatory surgical facilities
• Outpatient clinics
• Veterinary surgical suites
• Medical training and simulation centers
