Blickman Built In/Recessed Warming Cabinet

The Blickman Built-In/Recessed Warming Cabinet is engineered for seamless integration into OR wall consoles and clinical workstations. Available in single or dual‑chamber models, with glass or stainless-steel doors (both self-closing and, where applicable, lockable), this unit provides consistent warming for blankets and medical solutions while maintaining a sleek, built-in aesthetic.

Boasting top-mounted fans for even heat distribution, touchscreen or digital controllers, and precise temperature regulation within ±1 °F, this recessed cabinet meets clinical standards for performance and safety. It’s ideal for hospitals, surgical suites, and cleanroom environments that require built-in heating solutions without compromising space or workflow efficiency.

Key Features

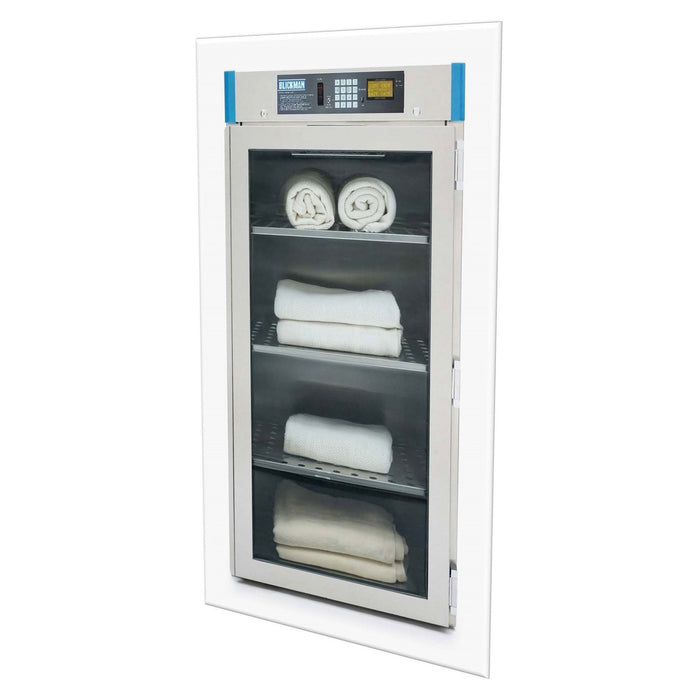

• Built-in/recessed design—adds a flush, integrated look to clinical settings
• Available in single or dual‑chamber configurations
• Choice of glass or stainless-steel doors; pass-through models offer doors on both sides
• Top-mounted circulation fan improves airflow and frees bottom shelf space
• Self-closing, adjustable‑tension, magnetic‑gasket doors—hands‑free operation
• Highly accurate heating (90–160 °F) with ±1 °F stability and minimal heat transfer outside cabinet
• Touchscreen or digital controllers with alarms, data logging, passcode/key lock, and trend display
• Three adjustable perforated stainless-steel shelves per chamber

Product Specifications

• Model Options / Item Numbers:
  • SW30TG – Touchscreen, glass door (14BSW30243), 320 lbs

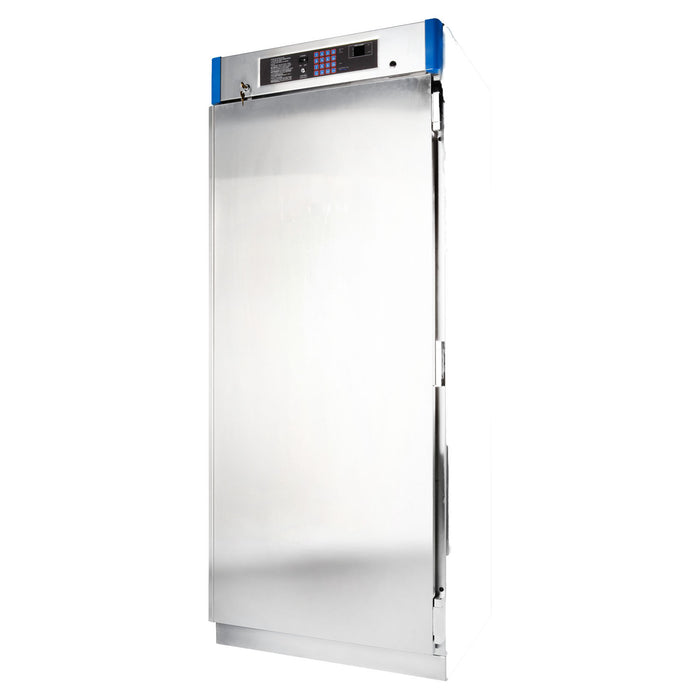

  • SW30TS – Digital, stainless-steel door (14BSW30200), 320 lbs
  • SW40TG – Touchscreen, larger single-chamber glass (14BSW40243), 320 lbs
  • SW40TS – Digital, stainless door (14BSW40200), 320 lbs
  • SW30TPTGS – Digital pass-through glass/glass (14BSW30278), 245 lbs
• Dimensions: 30″ W × 60″ H × 20 5/8″ D
• Electrical: 7.5 A draw (750 W); hospital-grade cord; available 100–120 VAC or 220–240 VAC
• Temperature Range: 90–160 °F; maintains within ±1 °F of set point
• Shelving: Three adjustable perforated 304 stainless shelves per chamber
• Door: Self-closing, magnetic-gasket with adjustable tension; lockable (glass/stainless); pass-through models lock on both sides
• Construction: Double-wall Type 304 stainless steel, #4 satin finish, heli-arc welded, insulated back
• Fan Placement: Top-mounted for even airflow and preserved storage
• Controller Features: PID with touchscreen or digital interface; includes alarms, data recorder with RTC, graphical trends, calibration reminders, passcode/key lockout

Ideal For

• Operating room wall consoles
• Cath labs, procedure suites, or sterile processing rooms needing integrated warming
• Cleanrooms and pharmacies with built-in equipment provision
• Facilities requiring pass-through heating for sterilized or contaminated items
