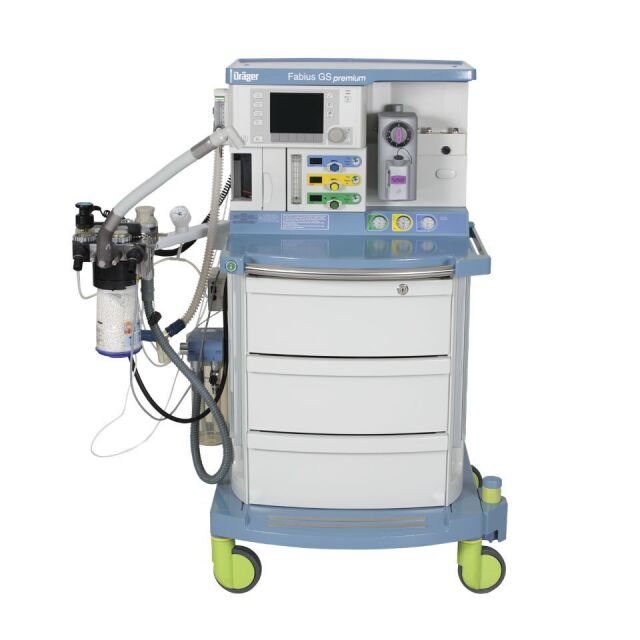

The Dräger Fabius® GS Premium Anesthesia Workstation offers a versatile and efficient solution for anesthesia delivery across various healthcare settings. Designed for use in hospitals, surgical centers, and outpatient clinics, this system combines advanced ventilation capabilities with a user-friendly interface to meet diverse clinical needs.

Overview

Featuring the electronically controlled E-vent piston ventilator, the Fabius GS Premium delivers ICU-like ventilation performance without the need for drive gas. It supports all major ventilation modes, including volume control, pressure control, pressure support, and SIMV/PS. The integrated high-contrast color monitor displays vital ventilation parameters and curves in real time, enhancing clinical decision-making. Its modular design and compact breathing system allow for customization to suit individual operating room requirements.

Key Features

• Electronically controlled E-vent piston ventilator eliminates the need for drive gas
• Supports major ventilation modes: Volume Control, Pressure Control, Pressure Support, and SIMV/PS
• High-contrast color monitor with virtual flow tubes and real-time parameter display
• Compact, modular breathing system mountable on either side for ergonomic flexibility
• Integrated LED workplace illumination and additional light source for low-light environments
• Highly maneuverable trolley with central brake for easy positioning
• Large drawers and work surface provide ample storage and documentation space
• Compatibility with Dräger CLIC absorbers for efficient CO₂ absorption
• Ready for IT integration with hospital information systems and Infinity® monitoring solutions

Product Specifications

• Ventilator Technology: Electronically controlled E-vent piston ventilator
• Ventilation Modes: Volume Control, Pressure Control, Pressure Support, SIMV/PS
• Display: 6.5" TFT color monitor
• Battery Backup: Typical run-time of 120 minutes in case of power supply failure
• Device Versions: Trolley version, ceiling version
• Breathing System: Easy-to-position, mountable on left or right side
• Fresh-Gas Mixer: Mechanical mixer with digital read-out (manual needle valves)
• Gases: O₂, Air, N₂O
• Serial Interfaces: 2x RS232
• Power Supply: 100–240 VAC, 50/60 Hz, 70 VA
• Weight: Approximately 296 lbs (134.2 kg)

Ideal For

• Hospitals and surgical centers
• Outpatient clinics
• Ambulatory surgery centers
• Facilities requiring advanced ventilation capabilities in a compact system
