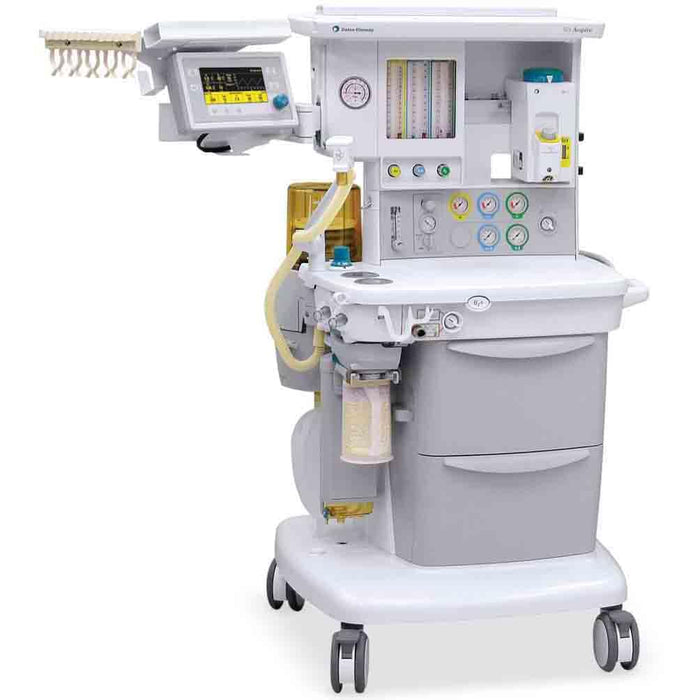

The GE Datex-Ohmeda Aespire S/5 Anesthesia Machine with 7900 SmartVent offers a reliable and efficient solution for anesthesia delivery in various healthcare settings. Designed for use in hospitals, surgical centers, and outpatient clinics, this system combines advanced ventilation capabilities with a compact, user-friendly design.

Overview

Equipped with the 7900 SmartVent ventilator, the Aespire S/5 provides precise control over ventilation parameters, supporting a range of modes including Volume Control, Pressure Control, SIMV, and PSVPro with apnea backup. The Advanced Breathing System (ABS) features a minimal number of parts and connections, reducing the risk of leaks and misconnects, and is fully autoclavable for easy maintenance. The workstation's ergonomic design includes ample workspace, integrated cable management, and optional auxiliary O₂ and suction controls, enhancing clinical workflow and patient safety.

Key Features

• 7900 SmartVent ventilator supporting multiple ventilation modes: Volume Control, Pressure Control, SIMV, and PSVPro with apnea backup
• Advanced Breathing System (ABS) with minimal parts and connections, fully autoclavable and latex-free
• Integrated inspired oxygen monitoring and smart alarms for enhanced patient safety
• Ergonomic design with large work surface, dual drawers, and enhanced cable management
• Optional integrated auxiliary O₂ flowmeter and suction control
• Fresh gas flow compensation with a minimum O₂ flow of 50 mL/min
• Dual flow tubes standard for higher resolution of low flows
• Lightweight and compact for easy maneuverability

Product Specifications

• Dimensions: 28.3" W x 28.7" D x 52.9" H (72 cm x 73 cm x 134.5 cm)
• Weight: Approximately 238 lbs (108 kg)
• Work Surface Height: 32.2" (81.7 cm); Area: 334 in² (2160 cm²)
• Top Shelf Weight Limit: 75 lbs (34 kg); Dimensions: 26" W x 15.75" D (66 cm x 40 cm)
• Drawer Internal Dimensions: 13" W x 10.4" D x 6.9" H (33 cm x 26.5 cm x 17.5 cm)
• Casters: 5" (12.5 cm) diameter with individual locking front casters
• Power Input: 100–120 VAC, 50/60 Hz; Power Cord Length: 16.4 ft (5 m)
• Current Leakage: < 300μA
• Auxiliary Common Gas Outlet: ISO 22 mm OD and 15 mm ID
• Gas Supply Pipeline Input Range: 35–88 psig (240–600 kPa)
• Battery Backup: Approximately 90 minutes under typical operating conditions

Ideal For

• Hospitals and surgical centers
• Outpatient clinics
• Ambulatory surgery centers
• Facilities requiring advanced ventilation capabilities in a compact system
