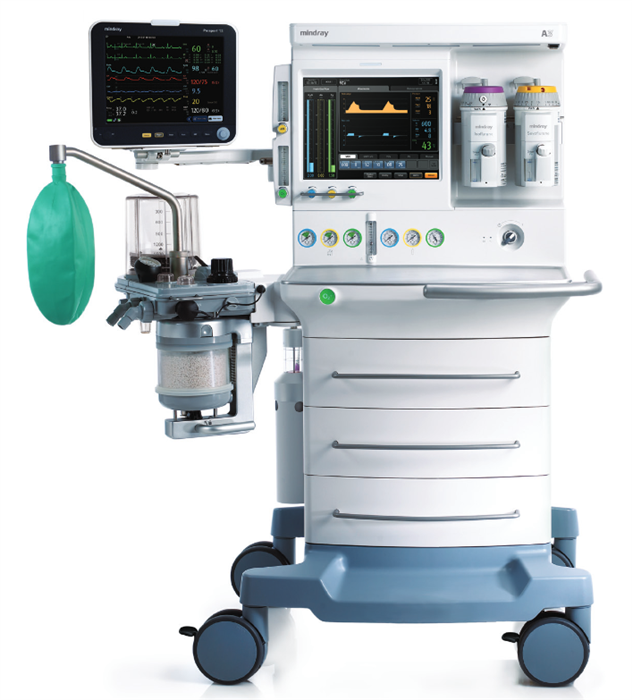

Mindray A3 Anesthesia Machine

The Mindray A3 Anesthesia Machine offers a seamless blend of advanced ventilation technology and intuitive design, making it an ideal solution for modern operating rooms and surgical centers. Engineered for versatility and efficiency, this system supports a wide range of patient demographics, from pediatrics to adults, ensuring precise anesthesia delivery in various clinical settings.

Overview

Designed with the clinician in mind, the Mindray A3 features a 15-inch touchscreen interface that simplifies navigation and control of ventilation settings. Its integrated ventilator supports multiple modes, including Volume Control Ventilation (VCV), Pressure Control Ventilation (PCV), and Pressure Support (PS), among others. The system's heated breathing circuit minimizes condensation, enhancing patient safety and comfort.

Key Features

• 15-inch touchscreen interface for intuitive control
• Supports VCV, PCV, PS, SIMV-VC, and manual/spontaneous modes
• Heated breathing system maintained at 35°C to reduce condensation
• Automatic compliance and fresh gas compensation for accurate tidal volumes
• Auxiliary O₂/Air flow meters deliver blended gas, reducing combustible O₂ concentration
• Economical single-container absorber compatible with various absorbents
• Integrated deck lighting with adjustable brightness
• Individual wheel brakes on all four casters for enhanced mobility and safety

Product Specifications

• Dimensions: 55.1" H x 41.3" W x 31.7" D (140 cm x 105 cm x 80.5 cm)
• Weight: 331 lbs (150 kg) without vaporizers and gas cylinders
• Power Supply: 100–120 VAC, 50/60 Hz; Power Consumption: Approx. 200 VA
• Backup Battery: Up to 150 minutes runtime with two batteries; 8 hours max charge time
• Pipeline Gas Supply Requirements: O₂, N₂O, Air at 40–87 psi (280–600 kPa)
• Top Shelf Weight Limit: 88 lbs (40 kg)
• Work Surface Dimensions: 33.4" H x 24.2" W x 15.1" D (85 cm x 61.6 cm x 38.5 cm)
• Compliance: Meets IEC60601 series standards

Ideal For

• Hospitals and surgical centers
• Ambulatory surgical facilities
• Outpatient clinics
• Veterinary surgical suites
• Medical training and simulation centers
